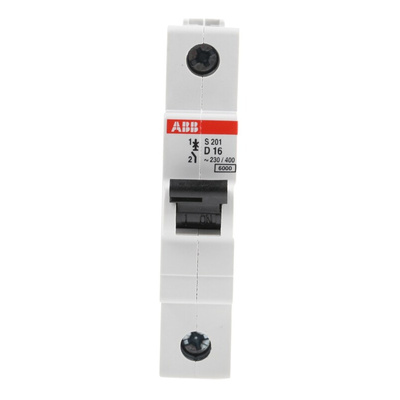

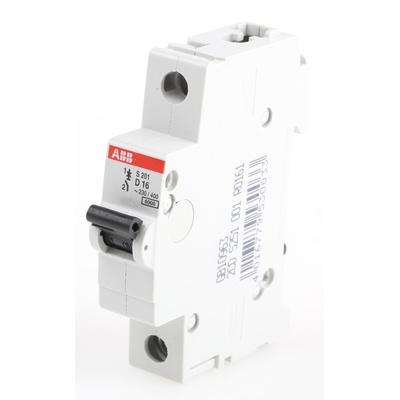

2CDS251001R0161 S201-D16, ABB System Pro M Compact S200 MCB, 1P, 16A Curve D, 253V AC, 72V DC, 6 kA Breaking Capacity

ABB 1-Pole MCB, 16A Current Rating, 230V AC Voltage Rating - S200 Series - S201-D16

Provide short circuit protection to your electrical systems with this MCB from ABB. As it has a single-pole configuration, it's designed for single-phase networks. The device works by monitoring your circuit and tripping to break current flow in the event of a short-circuit or overvoltage, protecting you from electric shocks and attached equipment from damage. With a rated current of 16A, it's suitable for high-current applications. As this circuit breaker is mounted directly onto a DIN rail without the need for tools, installation is quick and simple.

Features & Benefits

• Rated impulse withstand voltage of 4kV to handle sudden voltage spikes without damage
• Low power loss of 2W for energy efficiency
• Mechanical endurance of 20,000 cycles for long-term use
• Wide operating temperature range of -25°C to +55°C for use in demanding applications
• Red and green ON/OFF position indicators to make switching simple

Applications

• Process and packaging equipment
• Commercial and residential buildings

How much does this MCB weigh?

This MCB has a light weight of 125g, so it's easy to handle during installation and won't put strain on your system.

Standards

BS EN 60898

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

Datasheet - 2CDS251001R0161 S201-D16

Instruction Sheet - Miniature Circuit Breaker

Catalogue - Miniature Circuit-Breakers

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
