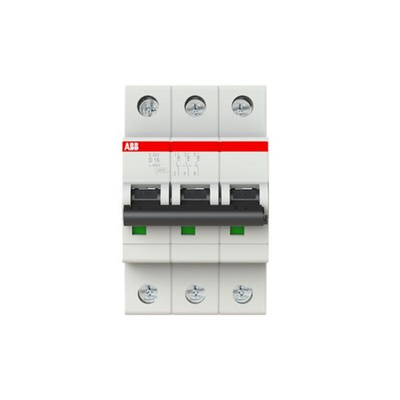

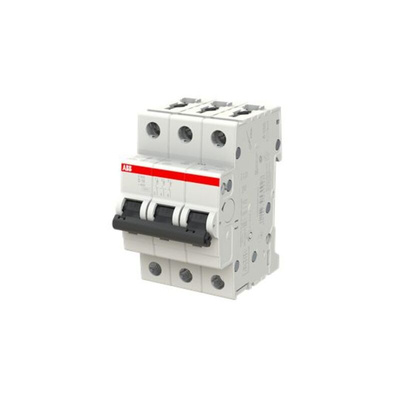

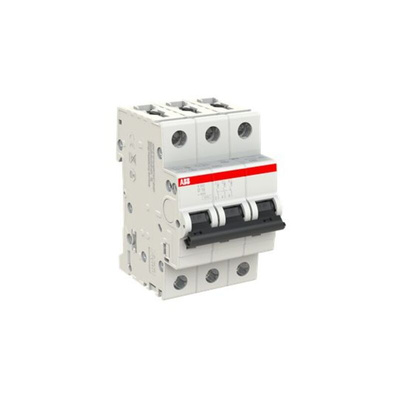

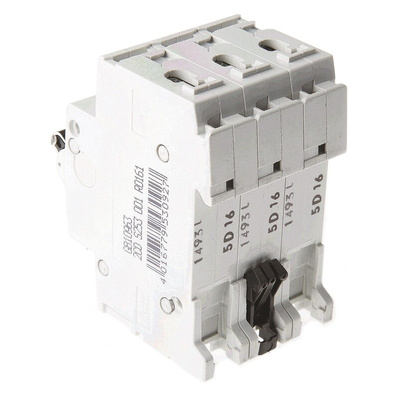

2CDS253001R0161 S203-D16, ABB System Pro M Compact S200 MCB, 3P, 16A Curve D, 440V AC, 12V DC, 6 kA Breaking Capacity

ABB MCB, Shock-Resistant, 20,000 Cycles Mechanical Endurance Rating - S200 Series - S203-D16

Put a stop to faulty currents reaching your electric circuit using this MCB from ABB. When it senses a rogue surge, it quickly cuts off power to downstream equipment, preventing damage from overcurrent or short circuits. The built-in contact indicator shows the operating status of this device so you can configure it at a glance. Mounting takes just a jiffy as it clips directly onto a DIN rail. For flexibility in your setup, you can install it in any position.

Features & Benefits

• Works reliably in an ambient temperature range of -25°C to +55°C
• Mechanical endurance of 20,000 cycles for long-term performance
• 16A current rating for safe use in high-power systems
• Resists shock and vibration for stability in harsh settings

Applications

• Residential buildings
• Assembly lines
• Telecommunications networks
• Construction sites

What tripping characteristics does this MCB have?

It's a type-D unit, which means that it trips at between 10 and 20 times its 16A full load current. This makes it suitable for equipment prone to frequent inrush currents.

How do I reset the breaker?

Resets are quick – simply flip the front-facing toggle switch.

Standards

BS EN 60898

Datasheet

Catalogue - Electrical Installation Solutions for Buildings Miniature Circuit-Breakers

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
