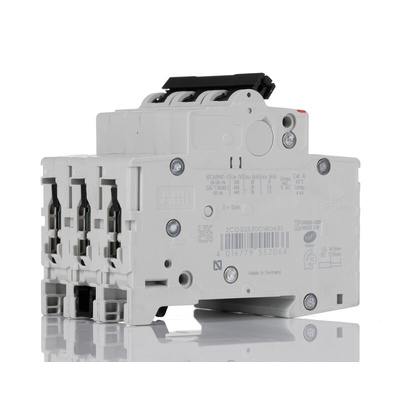

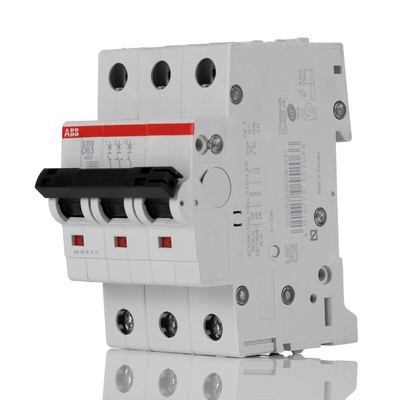

2CDS253001R0631 S203-D63, ABB System Pro M Compact S200 MCB, 3P, 63A Curve D, 440V AC, 12V DC, 6 kA Breaking Capacity

ABB MCB, 14.4W Power Loss, DIN Rail Mounting - S200 Series - S203-D63

Get ahead of electrical hazards in your industrial system with this MCB from ABB. It keeps an eye on an attached circuit and steps in to cut power in the event of a short circuit or overload. This prevents damage to downstream equipment and reduces the risk of fire outbreaks, to boost workplace safety. The unit's three-pole construction makes it the right choice for three-phase circuits. Thanks to thermoplastic housing, this piece of kit holds fast against impact and corrosion, so you can count on it to stay the course in harsh environments.

Features & Benefits

• DIN rail mounting method is simple and tool-free, saving time and effort
• Easy-to-use toggle actuator switch for a quick reset after it's tripped
• Current rating of 63A makes it the right choice for high-current-consuming applications
• Mechanical endurance of 20,000 operating cycles assures you of long-term performance

Applications

• Machine building
• Medical equipment
• Electrical workshops

What tripping characteristics does this MCB have?

This unit has type-D characteristics, which means it trips at 10 to 14 times its rated current. It fits the bill for systems that are prone to high inrush currents.

Standards

BS EN 60898

Datasheet

Manual - S2023-D63

Catalogue - Low Voltage Products

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
