2744610, Phoenix Contact 4-Contact Interface Module, DIN Rail Mount

FL CAT5 Terminal box - Ethernet connection field

CAT5 Ethernet connection field
Fast assembly, since no need to make up RJ45 connectors in-situ
Stamped screw terminals
Strain relief with shield connection
Shielding connected to DIN rail via universal locking foot

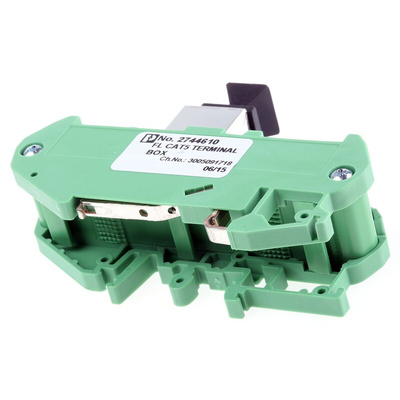

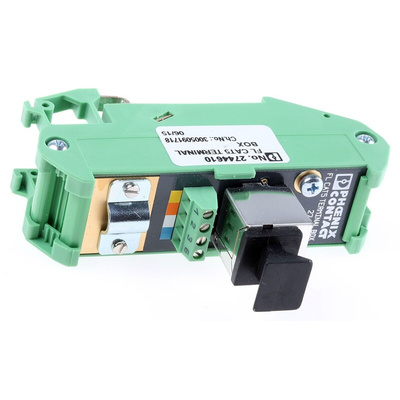

Phoenix Contact 4 Pole Interface Module, DIN Rail Mount - FL CAT5 TERMINAL BOX - 2744610

This Phoenix Contact interface module lets you join two separate ethernet cables to each other, without the need for couplers or connectors. It has a simple screw termination and an RJ45 (Registered Jack) socket.
The component is designed to be mounted on a DIN rail with a simple clip action that makes it quick to remove or replace. To ensure your safety, it has shielding that you can connect to the DIN rail with a simple locking foot. It's also made from a durable green polyamide (PA) material that offers good electrical and chemical resistance. An IP20 rating means this product is touch-proof and resistant to large particles.
As part of an ethernet connection, the module can support speeds of up to 100 Mbps. Use it as part of your computer hardware or in network setups at home and in commercial environments.

• Dimensions of 90 (length) x 25 (width) x 52 mm (depth)
• Minimum operating temperature of 0°C
• Maximum operating temperature of +70°C
• Four contacts
• Conductor size of 26 to 16 American Wire Gauge (AWG)
• Weight of 68.2 g

Datasheet
