2832771, Phoenix Contact FL SWITCH SF 8TX Series DIN Rail Mount Ethernet Switch, 8 RJ45 Ports, 100Mbit/s Transmission, 24V dc, Модуль

Phoenix Contact FL SWITCH SF - Ethernet switch

The Phoenix Contact range of FL SWITCH SF factory line switches have the standard functions in numerous versions. They can be used for quick and cost-effective ethernet network expansion.
The IP20 SF switches have a depth of 30mm meaning you can install in flat control cabinets.

Features and Benefits

• High port density
• Flat housing shape
• Auto-negotiations function
• Auto-crossing function
• Redundant voltage supply
• Floating signal contact
• With and without optical waveguide port
• Reliable communication for your network is guaranteed
• Transmission speed of 10/100 Mbps

Approvals

CE

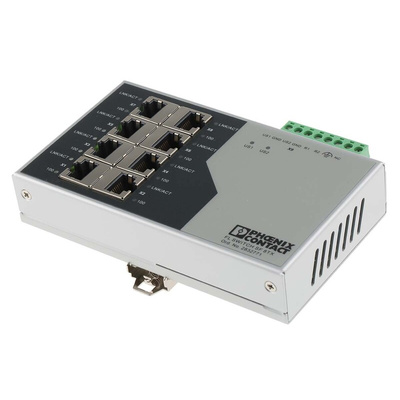

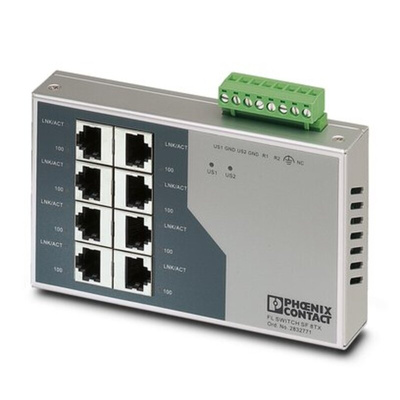

Phoenix Contact Ethernet Switch, 24V DC, 100Mbit/s Transmission Speed - FL SWITCH SF 8TX -2832771

Use this industrial Ethernet switch to connect several communication devices together at the same time. It has eight RJ45 (registered jack) ports which support transmission speeds up to 100Mbps (megabits per second), making it suitable for applications requiring fast data transfer. This switch has a robust aluminium housing that provides impact and corrosion resistance. This means it's built to last a long time and can withstand daily use in busy work environments.
You can fit the unit neatly in your enclosure, thanks to its compact dimensions of 135 (width) by 94.3 (height) and 30mm (depth). An Ethernet switch like this one is commonly used in both homes and offices to create a network of linked devices, such as computers, servers and printers.

• Operating temperature range of 0°C to +55°C for use in commercial and industrial environments
• LED (light-emitting diode) indicators make it easy to check data and link reception
• Light weight of 418g ensures it's easy to handle and won't add unnecessary stress to mounting surfaces

Datasheet 2832771
