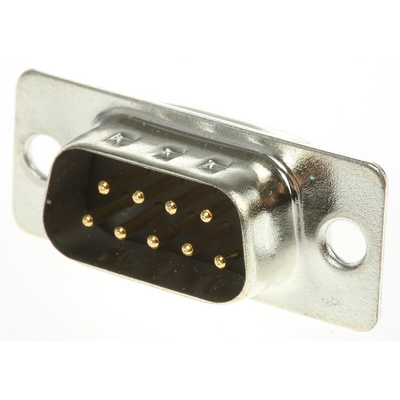

RS PRO 9 Way Through Hole D-sub Connector Plug, 2.77mm Pitch, Разъем

RS PRO 9 Way Through Hole D-sub Connector Plug, 2.77 mm Pitch

Use this RS PRO connector plug with the 9-way sockets on your electronic components. The product establishes links between printed circuit boards, computer units and monitors.
A thermoplastic casing makes the connector resistant to chemicals, so it won't react or disintegrate when coming into contact with substances like solvents or cleaning agents that can damage your devices. Dimpled plug shells ensure effective grounding to protect your equipment against voltage surges and eliminate shock hazards. The gold-plated copper alloy connecting pins are highly conductive and effectively transfer power and signals through the plug to your components.
This product is Restriction of Hazardous Substances (RoHS) certified so you can be sure it is made using only minimal amounts of any substances that can harm your health. You can use this connector for plug-in medical and industrial applications.

Features and Benefits

• Straight body orientation
• Copper alloy contact material
• Gold contact plating
• Current rating of 7.5 A
• Depth of 12.55 mm
• Dimensions of 30.81 (length) x 4.1 (width) x 12.55 (height) mm
• Male gender
• Thermoplastic housing material
• Length of 30.81 mm
• Maximum operating temperature of +125°C
• Minimum operating temperature of -55°C
• Through-hole mounting type
• Nine contacts
• Pitch of 2.77 mm
• Solder termination method
• Voltage rating of 250 V
• Width of 4.1 mm

Dimensional Drawing

RS Pro Datasheet
