RS PRO 9 Way Through Hole D-sub Connector Socket, 2.77mm Pitch, Разъем

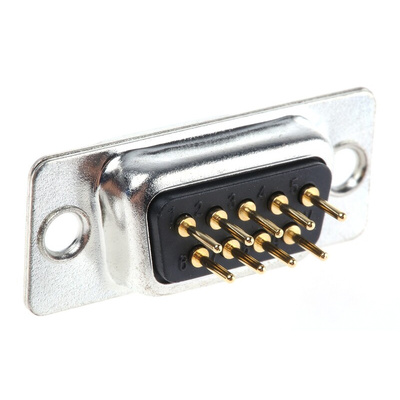

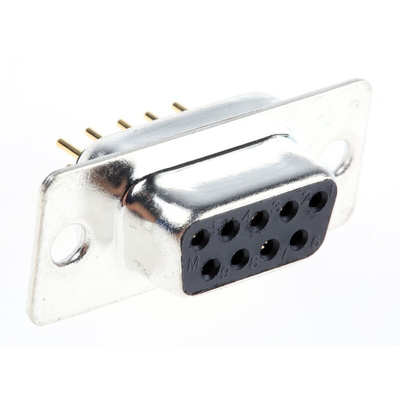

RS PRO 9 Way Through Hole D-Sub Connector Socket, 2.77 mm Pitch

When you need a reliable way to establish connections between your electronic components, choose this D-sub connector socket from RS PRO. It's used to transfer signals or power between computing devices, monitors and printed circuit boards (PCBs).


The connector is chemical-resistant thanks to its thermoplastic casing. This means it won't disintegrate or react in the presence of cleaning agents or solvents, making it suitable for use in demanding environments. The gold-plated copper alloy contacts ensure high conductivity, allowing for efficient transfer of power and signals to your components.


This D-sub connector contains only trace amounts of any harmful materials as it complies with Restriction of Hazardous Substances (RoHS) directives. You'll find this connector used for plug-in industrial and medical applications.

Features and Benefits

• Straight body orientation


• Copper alloy contact material


• Gold contact plating


• Current rating of 7.5 A


• Dimensions of 30.81 (length) x 4.1 (width) x 12.55 mm (depth)


• Female gender


• Thermoplastic housing material


• Minimum operating temperature of -55°C


• Maximum operating temperature of +125°C


• Through-hole mounting type


• Nine contacts


• Pitch of 2.77 mm


• Solder termination method


• Voltage rating of 250 V
