RS PRO 50 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, Разъем

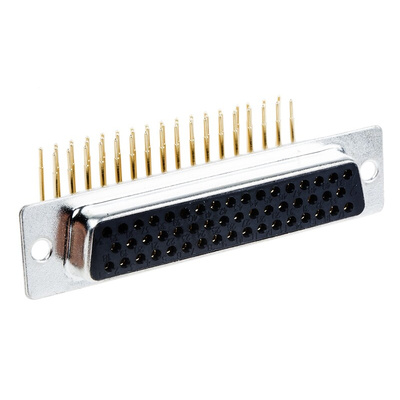

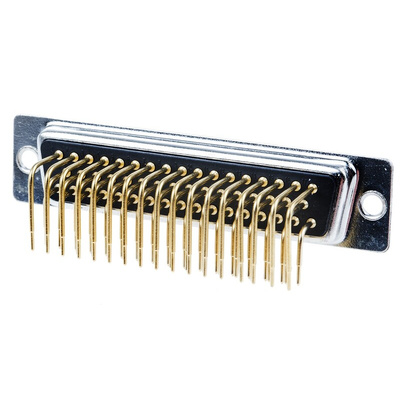

RS PRO 50 Way Right Angle Through Hole D-sub Connector Socket, 2.77 mm Pitch

Widely used in computer hardware and instrumentation, this 50-way D-Sub connector socket is ideal for making I/O (input/output) connections. It has a right-angled orientation for neat and robust panel installation.

The D-shaped, tin-plated steel shell provides a strong mechanical connection and ensures the plug is inserted the right way round. Gold-plated formed contacts ensure high-quality signal transmission. It's voltage-rated at 250 V and current-rated at 5 A, and will work in a range of temperatures from -55˚C to +125˚C. The shell provides good shielding of the signal from electromagnetic interference and tinned solder cup terminations make wiring easy.

The adapter has been tested to ensure its safety and reliability. You can be sure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains only minimal hazardous substances (RoHS). You'll find D-Sub connectors widely used across a range of across applications, from remote sensors to data processing.

Features and Benefits

• Through-hole D-Sub connector socket
• Right-angled
• 2.7 mm pitch
• Voltage rated at 250 V ac /rms 60Hz
• Current rated at 5 A
• Flanges for panel mounting
• Measures 66.9 mm x 4.1 mm x 15.3mm
• Minimum operating temperature of -55°C
• Maximum operating temperature of +125°C
• Contact resistance of 100 mΩ at 1 A dc
• Insulated with glass-filled thermoplastic PBT UL94V-0
• Insulation resistance of 1,000 megohms at 500 V dc

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
