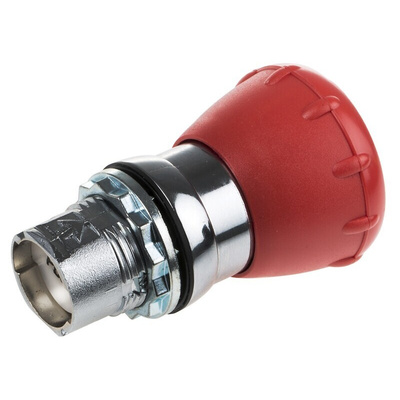

800FM-MT44, Allen Bradley 800FM Series Twist Release Emergency Stop Push Button, Panel Mount, 22.5mm Cutout

800 FM Series, Emergency Stop, Mushroom Head

Die cast zinc alloy

Contact blocks are not supplied with these items

Note

For a complete emergency stop button unit a mushroom operator head and a contact block (see 511-8156 and 511-8358) will need to be purchased separately.

Allen Bradley Emergency-Stop Push Button, Panel Mount, 22.5mm Cutout - 800FM-MT44

Use this Allen Bradley emergency-stop push button from Rockwell Automation to halt machinery immediately in the event of an emergency. It improves workplace safety by letting you shut down industrial processes when there's a risk of injury or malfunction. Its mushroom-style head is coloured red to stand out against your machinery, making it simple to locate the button. For resistance to corrosion, its body is made of a highly durable die-cast zinc alloy that's suitable for use in tough industrial environments.

Features and Benefits

• Industry-standard cut-out diameter of 22.5mm for simple mounting on a panel
• Accommodates up to six circuits for convenient use
• Plastic button material is resistant to impact and corrosion for use in demanding environments

Standards and Certifications

• CE (Conformité Européenne)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standard)

What accessories do I need to mount this emergency-stop push button?

This product is compatible with the 800F series. To create a complete emergency stop button unit, use a compatible mounting latch and contact block, such as the 800F-PX01S block and latch (511-8156).

UL Cert 1 Auxiliary Devices

UL Cert 2 Auxiliary Devices-Component

UL Cert 3 Auxiliary devices certified for Canada

UL Cert 4 Auxiliary Devices Certified for Canada-Components

UL Cert 5 Motor Controllers, Auxiliary Devices, Marine

800F ABS Approval

Datasheet

Machine Guarding and Safety Range Overview
