1SFA611610R2001 MCB-10B, ABB ABB Modular Series Contact Block, 690V, 1NO, Контактный блок

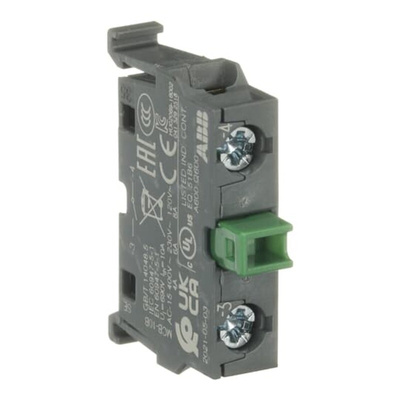

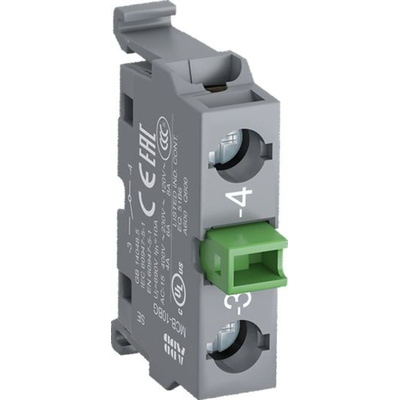

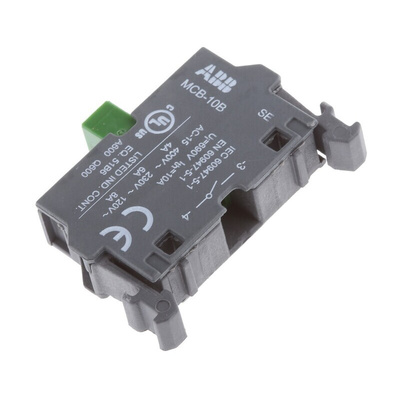

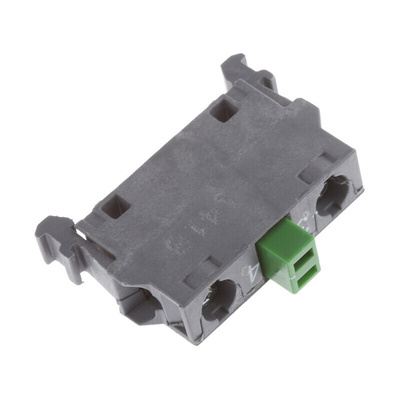

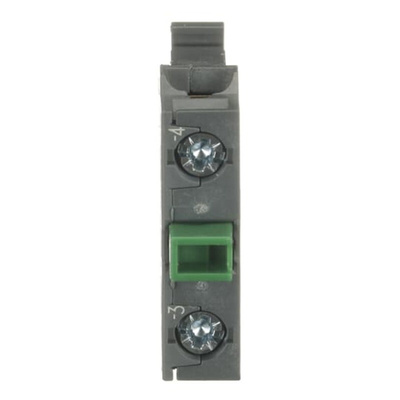

ABB Contact Block, 690V Operational Voltage Rating, 6A Operational Current Rating - ABB Modular Series - MCB-10B

Command your circuit with a flick of the switch with this ABB contact block. Thanks to its mechanical endurance of 10 million cycles, this long-lasting unit delivers reliable switching. It's also self-cleaning to reduce maintenance and limit service downtime. Dimensions of 28 (L) x 10 (W) x 44mm (H) mean the block easily fits into a compact enclosure. Its IP20-rated terminals keep your fingers safe from electric shocks during installation.

• DIN-rail mounting for convenient, tool-free installation
• 690V operational voltage rating makes it suitable for heavy-duty applications
• Wide operating temperature range between -25°C and +70°C for use in tough conditions

Applications

• Medical equipment
• Industrial assembly and packaging lines
• Food and beverage processing
• Lighting systems

What configuration does this contact block have?

The unit has one NO contact. This means it's designed to create an electrical connection only when activated, such as when a switch is flipped or a button is pressed. When not activated, the circuit remains open, preventing the flow of electrical current.

How heavy is the block?

It's a lightweight unit weighing only 40g, which means it puts minimal strain on your setup.

ABB

Robustly constructed, suitable for indoor or outdoor use
Ingress protection to IP65 with metric conduit entries
Supplied with contact block, additional contact blocks can be fitted
Emergency stop complies with EN418
