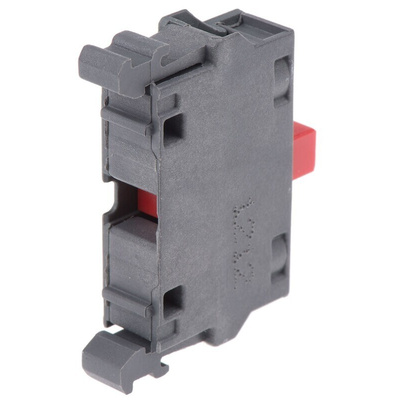

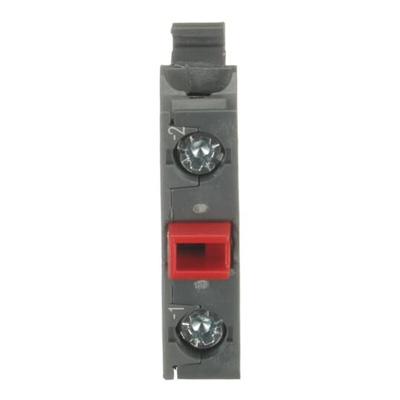

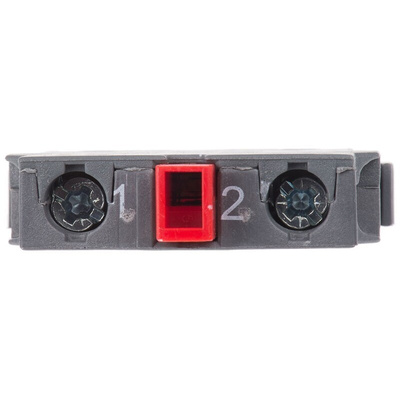

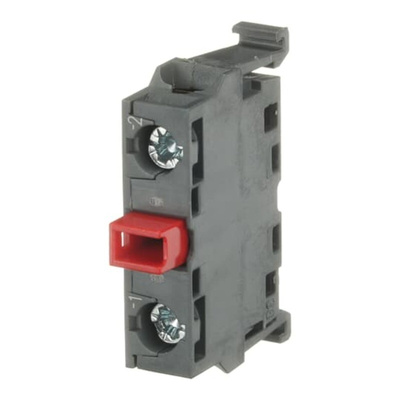

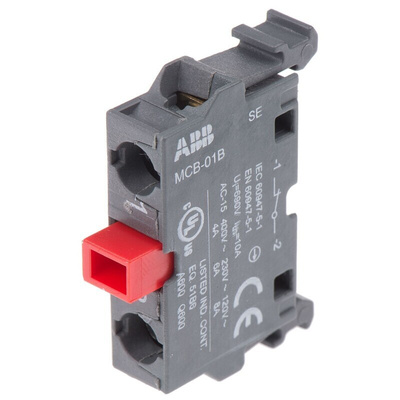

1SFA611610R2010 MCB-01B, ABB ABB Modular Series Contact Block, 690V, 1NC, Контактный блок

ABB Contact Block, 6kV Rated Impulse Withstand Voltage, Screw Terminals - Modular Series - MCB-01B

Looking for a quick and easy way to tell your machinery what to do? With this contact block from ABB on your control panel, you can switch a circuit in a jiffy. For fuss-free assembly, simply snap the unit onto the back of your switch and mount the assembly onto your panel. Thanks to its NC configuration, this unit is a good choice for emergency stop systems where you need to cut power to a circuit without delay.

Features & Benefits

• Performs reliably in demanding conditions, thanks to its wide operating temperature range of -25°C to +70°C
• IP20 rating means it's touch-proof and protected against objects larger than 12mm
• Screw terminals for speedy wiring and connections that won't work loose under vibration

Applications

• Control equipment
• Manufacturing facilities
• Conveyor systems

How durable is this contact block?

This contact block has a mechanical lifespan of up to 10 million operations, so you can rest assured it's built for long-term use.

What wire sizes does this contact block accept?

It accepts wire sizes between 18 and 14AWG, making it a versatile piece of kit.

ABB

Robustly constructed, suitable for indoor or outdoor use
Ingress protection to IP65 with metric conduit entries
Supplied with contact block, additional contact blocks can be fitted
Emergency stop complies with EN418

Datasheet

Datasheet - MCB-01B
