118525 XDP4/ST(400V50HZ,440V60HZ), Eaton DOL Starter, DOL, 4 kW, 400 V, IP55, Пускатель

D.O.L - Steel Enclosure

IP55 sheet steel enclosed starter complete with isolator for DOL applications to comply with IEE Regulations, 16th Edition on Isolation and Switching. AC-3 rated triple pole contactor with IP20 terminals and triple pole AC-3 rated switch disconnector with IP20 terminals fitted as standard. The disconnector has provision for up to 3 padlocks. The mushroom headed 'Stop' pushbutton is IP65 with the 'Start' pushbutton having an IP65 flush operator, both have IP20 terminals. Manufactured using readily available Eaton components which comply with the following specifications: isolator: IEC 943-3, pushbuttons: IEC 947-5-1, contactor: IEC 947-4-1. The enclosure is pre-wired to accept the Eaton Z00 or ZB thermal overloads which offer single phasing sensitivity to IEC 947-4. DOL starters comprise of an enclosure, switch disconnector, stop and start pushbuttons and a contactor.

Overload relay is not supplied and must be ordered separately
Fitted with 4x20mm and 2x25mm knockouts
H184 x W184 x D184mm

Note

FLC figures quoted are maximum, other overload ratings can be used dependent on FLC rating.

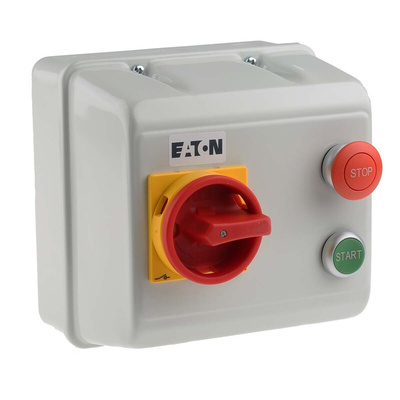

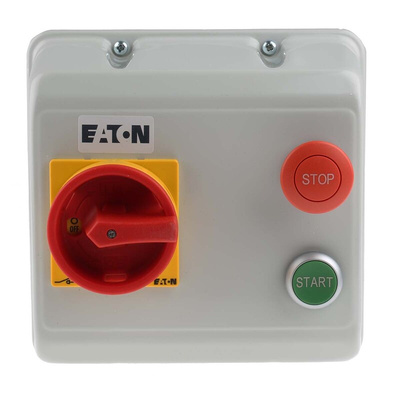

Eaton DOL Motor Starter, 4 kW, 400 V AC - XDP Series - XDP4/ST

This starter from Eaton offers a simple, reliable solution for starting one-speed, single-direction motors. As it's a DOL (direct on line) type, it applies the full 400 V control voltage directly to the motor. The sturdy steel enclosure is resistant to corrosion and has an ingress protection rating of IP55, meaning it's resistant to dust and water. A built-in disconnect switch automatically cuts power in the event of an overload, protecting you and your equipment from hazardous surges. This type of starter is commonly used with small industrial motors on conveyor belts.

• Can be padlocked to keep the unit in the off position for safety when not in use
• Designed for a high number of operations for reliability and a long service life
• Compact dimensions with isolator of 185 (length) x 185 (width) x 150 mm (depth) for use in tight spaces

How do I operate this unit?

The starter is simple to use thanks to its automatic function and its clearly labelled start and stop buttons.

How can I mount this starter?

All starters in Eaton's XDP series are designed for surface mounting.

Note

Eaton formerly known as Moeller
