DPP50-24, TDK-Lambda DPP Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 2.1A Output, 50W, Блок питания

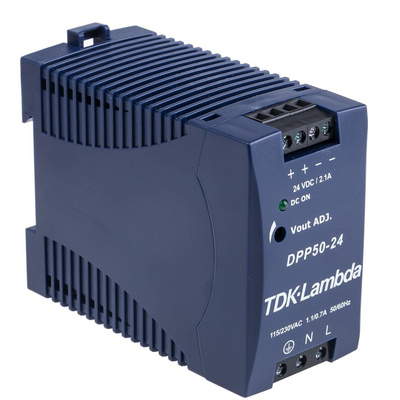

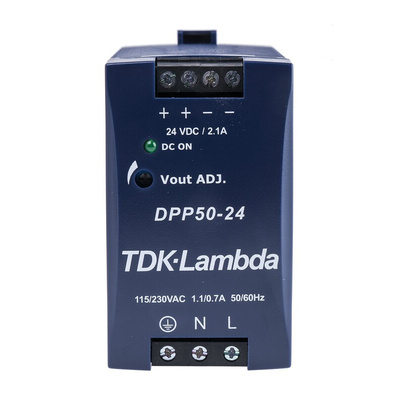

TDK-Lambda DIN Rail Power Supply

The TDK-Lambda DPP series switch-mode DIN-rail power supply have 2.1A output current at 24VDC output voltage. Its most outstanding features are compact size, load sharing and active power factor correction (PFC). This power supply has a universal single-phase input voltage rating ranging between 85VAC and 264VAC with adjustable output voltage. Its high immunity makes it suitable for almost every situation. The adjustable output voltage ranges between 22.5VDC and 28.5VDC

Features and Benefits

Convection cooled
Easy system integration
High efficiency up to 86%
LED indicator
Operating temperature ranges between -10°C and 71°C
Power rating is 50W
Ripple factor and noise is 50mV
Snap-on mount

Applications

Factory automation
Industrial controls
Process control
Test and measurement

Certifications

CE certified
EN
NEC class 2
UL approved
