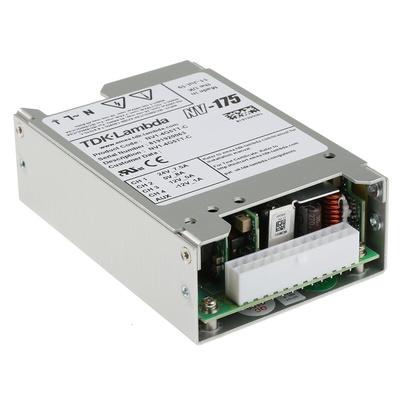

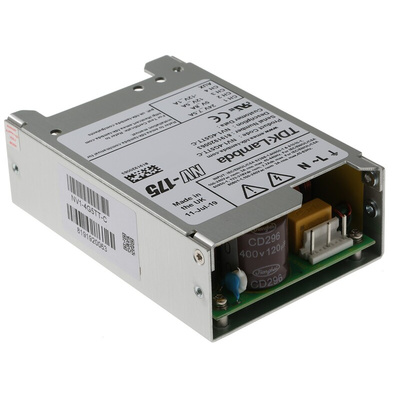

TDK-Lambda Switching Power Supply, NV1-4G5TT-C, 5 V dc, ±12 V dc, ±24 V dc, 1A, 180W, Quad Output, 90 → 264V ac, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda 180W quad output AC to DC embedded switch-mode power supply has an output current rating of 7.5A at 24VDC, 8A at 5VDC, 5A at 12VDC and 1A at -12VDC. It has a universal input supply voltage rating from 90VAC to 264VAC.
Inclusions:
U chassis and cover.

Features and Benefits

3mm fixing (2 either side or 4 on base)
Designed for 1U application
Fully regulated outputs
High power density
No minimum load required
Overvoltage, overcurrent, temperature, and short circuit protection
Remote sense are output one (triple O/Ps), outputs 1 and 2 (quad O/Ps) and output 1 is signal good
Suffix-N types have 'global interface signals'
Temperature controlled fan option
Comes with U chassis and cover

Certifications

CSA22-2-950
EN55022-B (EMC)
EN60950
EN61000-3-2 (power factor correction)

Datasheet - NV175
