Kyoritsu KEW8031F Phase Rotation Tester, CAT III 600 V, 60Hz Max, 600V ac Max, Индикатор чередования фаз

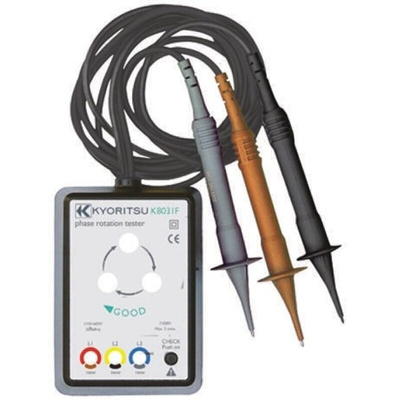

KEW8031F Phase Rotation Tester

The 8031F tester indicates phase sequence by a rotating disc which gives clear feedback. A system of lamps also indicates open circuit phases.
Small, lightweight and compact in design with no exposed metal parts. A test button is incorporated in the design.
The unit is supplied with 1.5 m GS38 fused test lead with probe clip and crocodile clip options. The unit has a wide operating range from 110 V → 600 V and 40 Hz → 400 Hz.

Phase indicator designed to check the presence of open phase and phase sequence by rotating disk lamps
Wide check range of 3 phase power source from 110 V → 600 V
Colour coded to conform with both old and new EU colour regulations
1.5 m fused leads with screw-in crocodile clips
Operational Voltage: 110 V ac to 600 V ac
Time limit for continuous >500 V: Within 5 min
Frequency Response: 40 Hz to 200 Hz (AC 110 to 200 V) 40 Hz to 400 Hz (AC 200 V to 600 V)
Safety Standard: IEC61010 to1 CATIII 600 V Pollution Degree 2

Supplied with

GS38 test leads, carry pouch and instructions.

Kyoritsu Phase Rotation Tester

The Kyoritsu phase rotation indicator has a voltage range of 110V to 600V and a frequency range of 40Hz to 400Hz. The 8031F tester indicates the phase sequence by a rotating disc which gives clear feedback. A system of lamps also indicates open circuit phases. Small, lightweight and compact in design with no exposed metal parts. A test button is incorporated into the design. The unit is supplied with 1.5 m GS38 fused test lead with probe clip and crocodile clip option, a carry pouch, and an instruction manual.

Features and Benefits

Wide check range of 3-phase power source
Colour coded to conform with both old and new EU colour regulations
Time limit for continuous >500V: Within 5min
Frequency response: 40 Hz to 200 Hz (AC 110V to 200V) 40Hz to 400Hz (AC 200V to 600V)

Applications

Feed motors
Drives
Electrical systems

Certifications

IEC61010-1
CATIII 600 V Pollution Degree
