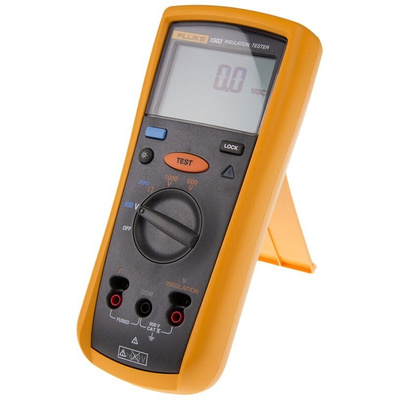

Fluke 1503 Electrical Insulation Tester

The Fluke 1503 2G ohm electrical insulation tester is compact, rugged, reliable and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning and preventative maintenance applications. The 1503 insulation tester comes with a remote probe due to which repetitive or hard-to-reach testing is made easy. Test leads, probes and alligator clips are also included. The testing voltage of this tester ranges between 500V and 1000V. This 1503 device is battery powered and has 4 AA battery type.

Features and Benefits

200mA Continuity
AC/DC voltage ranges between 0.1V and 600V
Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
Auto discharge of capacitive voltage for added user protection
Insulation test ranges between 0.1MΩ and 2000MΩ
Live circuit detection prevents insulation test if voltage > 30V is detected for added user protection
Read measurements easily with large, graphic backlit display
Remote probe, test leads, probes and alligator clips included with each tester
Resistance ranges between 0.01Ω and 20.00kΩ
Save battery power with auto power OFF

Certifications

ANSI/ISA 82.02.01
CAT III 600V
CAT IV 600V
CE certified
CSA certified
IEC/EN 61010-1
IP40 rated

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Supplied with
type":"Supplied with",

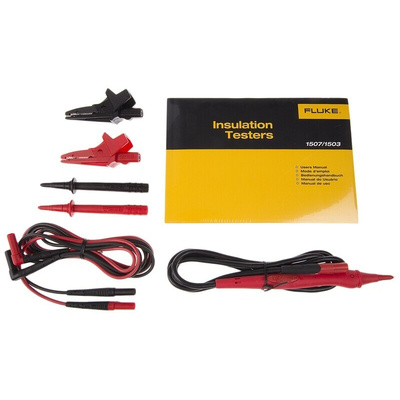

The Fluke 1503 insulation tester comes with:
Remote probe
Test leads
Test probes
Alligator clips
Holster
User documentation

1507/1503 Insulation Tester Quick Reference Guide

1507/1503 Insulation Tester Users Manual

FLUKE® 1507/1503 Technical Data

1507/1503 Insulation Tester Users Manual Supplement
