Fluke 1503, Insulation Tester, 1000V, 2GΩ, CAT III 600V UKAS Calibration, Измеритель сопротивления изоляции

Fluke 1500 Series Electrical Insulation Testers

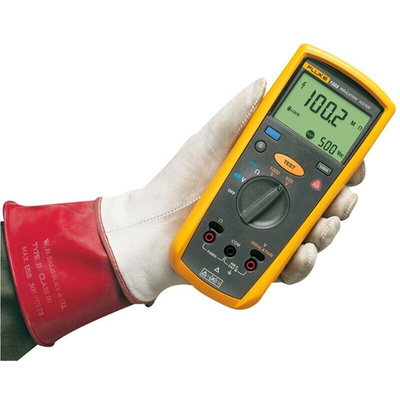

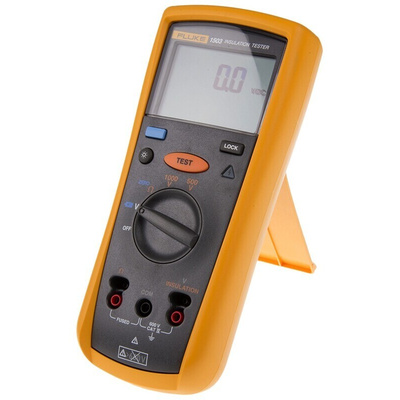

Fluke 1507 (10 GΩ) and 1503 (2 GΩ) electrical insulation testers are compact, rugged, reliable and easy-to-use. Their multiple test voltages make them instruments of choice for troubleshooting, commissioning and preventative maintenance applications. The remote probe helps save time and money when performing tests.

Features & Benefits

Insulation test range 0.01 MΩ to 10 GΩ (1507), 0.1 MΩ to 2 GΩ (1503)Insulation test voltages 500 V, 1000 V (1503 only), 50 V, 100 V, 250 V (both models)Automatic calculation of Polarisation Index and Dielectric Absorption Ratio (1507)Compare (Pass/Fail) function (1507)Repetitive or hard-to-reach testing easy with the remote test probeFor added user protection, live circuit detection prevents insulation test if voltage > 30 V is detected Auto-discharge of capacitive voltage for added user protectionAC/DC voltage 0.1 V to 600 V200 mA continuityResistance 0.01 Ω to 20.00 kΩAuto power offLarge, backlit displayCAT IV 600 V overvoltage category ratingRemote probe, test leads, probes and alligator clips included with each testerAccepts optional Fluke TPAK magnetic hanging systemFour AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation te

Supplied with

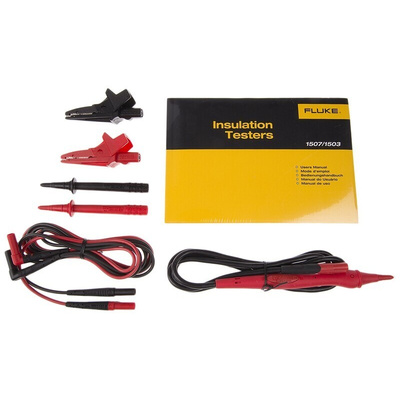

Remote probe, test leads, test probes, alligator clips, holster, user documentation

1507/1503 Insulation Tester Quick Reference Guide

1507/1503 Insulation Tester Users Manual

1507/1503 Insulation Tester Users Manual Supplement

Datasheet
