ROLP/RL/R/D, Fulleon RoLP Solista Sounder Beacon 101dB, Red LED, 9 → 28 V dc, IP54, IP65

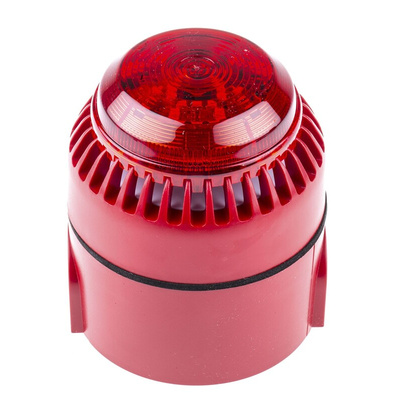

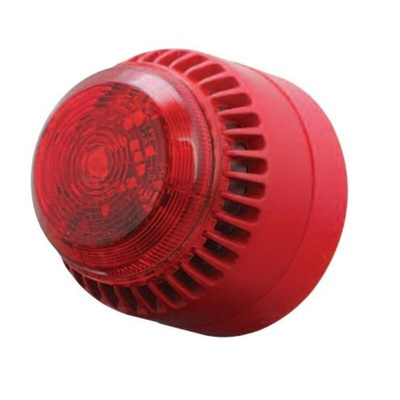

Fulleon RoLP Solista LED Sounder Beacon Fire Alarm

Dual alert and alarm functionality are just a few of the leading specifications that allow this range of sounder beacons to be a popular and reliable solution for users. Predominantly used as a fire alarm, the RoLP sounder beacons provide a convenient, versatile and rugged solutions for industrial and commercial installations. Often, beacons are being used to replace audible alarms, this is because a combined sounder beacon allows for both audible and visuals through one single installation point. Installing just one device enables users to free up some time and cost.

Features & Benefits

• Low current, high performance
• Delivers a powerful fire alarm sounder beacon that is CPD compliant
• Compact in size
• Robust and hardwearing
• Created and designed to be installed where areas require a physically robust and well-protected unit
• Suitable for a multitude of applications

Typical Applications

The Asserta range of audio-visual alarms is suitable for fire, process systems, industrial and signalling applications that require a combined indication device.

Warning

This product exceeds the requirements of En54-3 but is not designed to meet EN54-23. Where the Construction Product Directive or Regulation (CPD/CPR) is a country requirement, it cannot be used, legally, for the purpose of alerting room occupants to a Fire Alarm condition. For Countries where CPD/CPR does not apply, this note should be disregarded.

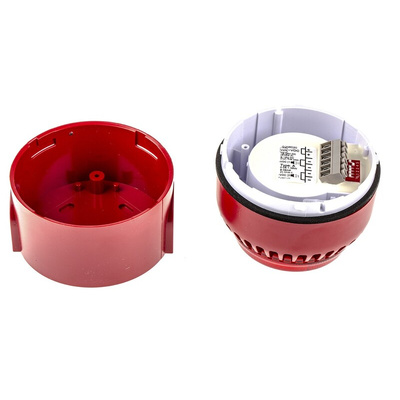

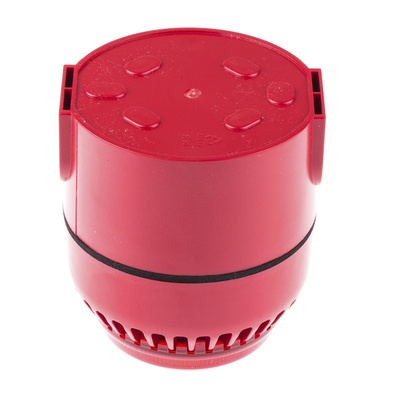

ROLP/RL/R/D RoLP Solista Sounder Beacon - Deep Base

• Lockable, standard base simplifies system upgrades
• Unobstructed, aesthetically pleasing low profile design
• Single installation point
• Low current LED technology
• Includes 32 user-selectable tones
• 2 alarm stages
• Alert and alarm function, providing high output sound
• Provides tone clarity, reducing confusion
• 9-28Vdc supply voltage
• Light output smaller than 0.5cd
• Volume control 101dB
• Current - 19mA
• Reverse polarity protection
• IP protection
• Comprised of a red polycarbonate lens and ABS body
• Flash rate is 1Hz

Statement for non EN54-23

Machine Guarding and Safety Range Overview

ROLP/RL/R/D Datasheet
