FL/AL/W/D/24V/S, Eaton Series Amber Sounder Beacon, 18 → 24 V dc, IP54, IP65, Wall Mount, 101dB at 1 Metre

Sounder Beacon

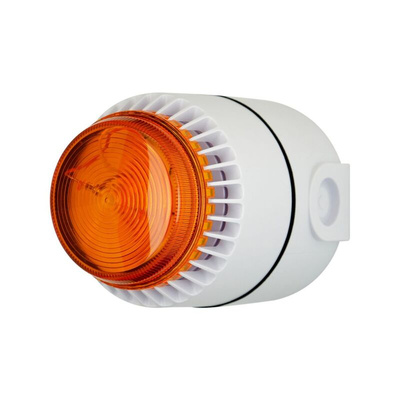

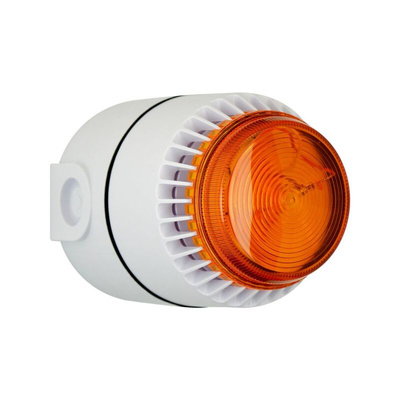

The Flashni DC flashy sounder beacon with an amber lens is an audible and visual device with one single installation point. It has a sound output of 101dB. This reduces installation costs and is also less obtrusive than two separate devices. It is suitable for fire, industrial, and signalling application requiring a combined indication device.
Additional options:
Red deep base - 530-6066
White deep base - 530-6072
VdS approved sounder and beacons - 530-6038, 530-6016, 529-4474, 529-4452 and 529-4468
The sounder and beacon elements for 529-4474 and 529-4468 are individually wired. This enables them to be controlled separately
530-6038, 530-6016, 529-4474, 529-4452 and 529-4468 are EN54 part 3 compliant
529-4452 is CPD compliant
Warning:
This product exceeds the requirements of En54-3. However, it is not designed to meet EN54-23. Where the construction product directive or regulation (CPD/CPR) is a country requirement, it cannot be used, legally, to alert room occupants to a fire alarm condition. For countries where CPD/CPR is not applicable, this note should be disregarded.

Features & Benefits

The supply voltage is between 18VDC and 24VDC

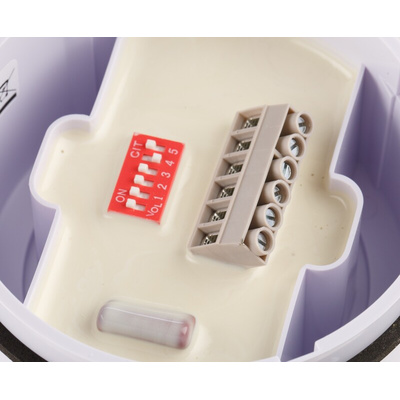

Includes 32 user-selectable tones
Reduced installation costs due to the single installation point
High output sounder beacon
Automatic sounder synchronisation
Suitable for a multitude of applications
Provides tone clarity, reducing confusion
Xenon flash
Volume control to alter the alarm to suit the application
Reverse polarity protected

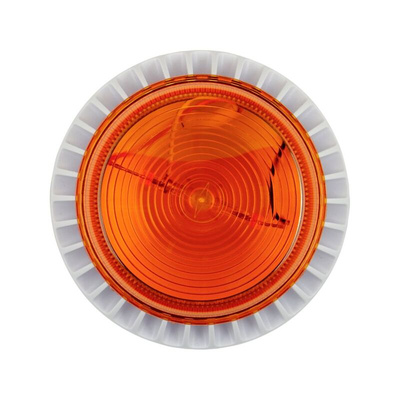

ABS cases and polycarbonate Fresnel lens
Flash power of 0.7j
Operating temperature range is between -10°C and 55°C
Deep base

What supply voltage do I need for this sounder beacon?

This unit works with supply voltages between 18 and 24V DC, so it caters for various setups without the need for conversion.

What are the benefits of a combined sounder beacon?

IP65 rated
CE certified

By performing the jobs of two alarm systems, a combined sounder beacon saves on installation space and eliminates the need for more components.

Note

Eaton formerly known as Fulleon
