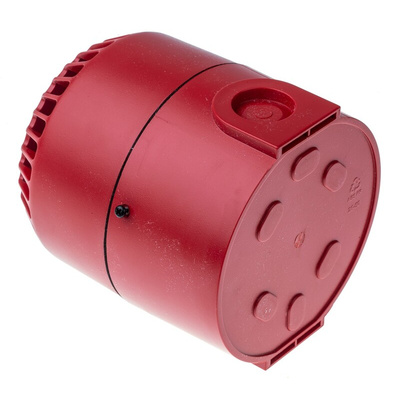

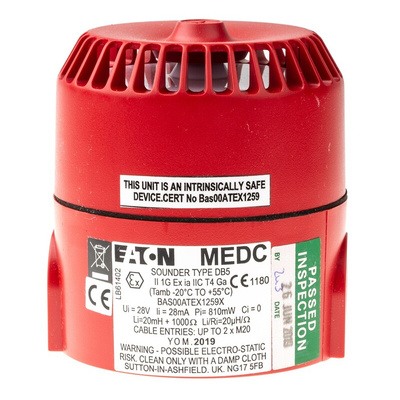

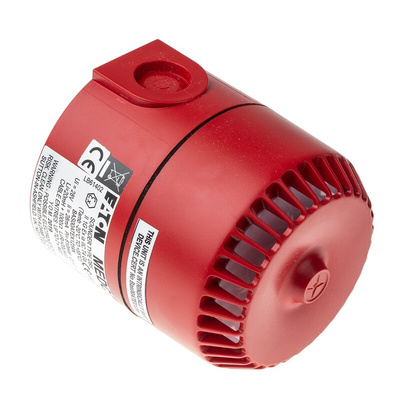

DB5 24V, Eaton Surface Mount Electronic Sounder, 24 V dc, 100dB at 1 m, IP65, DC, 24-Tone

Crouse Hinds Intrinsically Safe Electronic Sounder - DB5 Range

This range of lightweight, intrinsically safe electronic Sounders from Crouse-Hinds have been designed with a high weatherproof rating to cope with the harsh environmental conditions found offshore and onshore in the oil, gas and petrochemical industries. The DB5 can also be used in the mining industry.

The DB5 Intrinsically Safe Sounder is ideally suited for use in areas of high ambient noise, with a sound output greater than 100 dB. ATEX certified to Ex II 1G EX ia IIC T4, the multi-tone DB5 offers 26 tones, user-selectable using a 5-way DIL switch. A second alarm tone can be obtained by switching the negative supply to a third terminal. For extreme sound levels, the Sounder can be linked to the RTK DA135 Intrinsically Safe Beacon to create an audible and visual warning combination. The IP65 enclosure makes the DB5 Sounder ideal for the harsh environmental conditions found offshore as well as those of the onshore oil, gas and chemical industries.

Features and Benefits

• Suitable for a variety of offshore and on-shore industrial applications
• Suitable for Zone 0 use
• Intrinsically safe, use appropriate barrier or isolator
• Volume control as standard, up to 103 decibels dB(A)
• 26 different sound outputs, user selectable by internal switches with second alarm tone selectable using third wire
• Can be linked with RTK DA135 beacon to create full audio and visual warning system

Group and Category: II 1G EEx is IIC T4
Certificate NO: BAS OOATEX1259

Note

Where a range of values are specified for sound output levels and current consumption, the actual figures will depend on the tone chosen, and the volume setting where adjustable.

Note

Eaton formerly known as Fulleon
