SY/HO/R, Eaton Surface Mount Electronic Sounder, 9 → 28 V dc, 120dB at 1 m, IP21C, DC, 32-Tone

Fulleon Symphoni High Output Electronic Sounder

The Fulleon high output symphoni sounder is multi-tone with up to 32 audible alarm tones delivering sound levels up to 120 dB. The symphony sounder is an ideal solution to any signally needs and is suitable for use in open areas that have a high noise level such as industrial environments. This sounder works on a supply voltage of 28 V DC and offers efficient low current consumption.

Features and Benefits

• High sound output up to 120 decibels (dB) @ 1 metre
• Automatic synchronisation
• 32 tone electronic sounder (user selectable)
• Suitable for a 2-stage alarm
• Volume control as standard
• Ideal for high noise environments
• Alert and alarm function
• Six tones certified for fire use
• Surface-mounted installation
• Suitable for outdoor use
• Available in red or white
• IP66 weatherproof option

Note: Where ranges of values are specified for sound output levels and current consumption, the actual figures will depend on the tone chosen and the volume setting is adjustable.

Applications

• Fire alarms
• Security systems
• Process control
• Open and Noisy areas

Note

Where a range of values are specified for sound output levels and current consumption, the actual figures will depend on the tone chosen, and the volume setting where adjustable.

Standards

EN54-3 (CPD)

Approvals

VdS

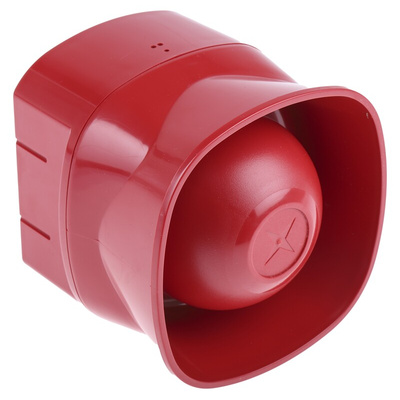

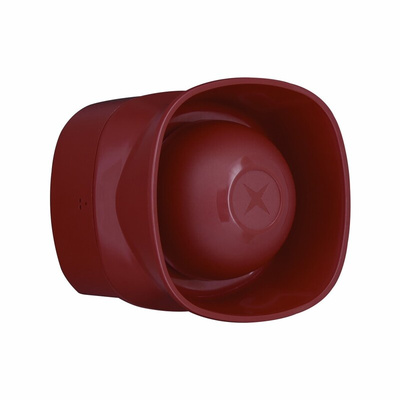

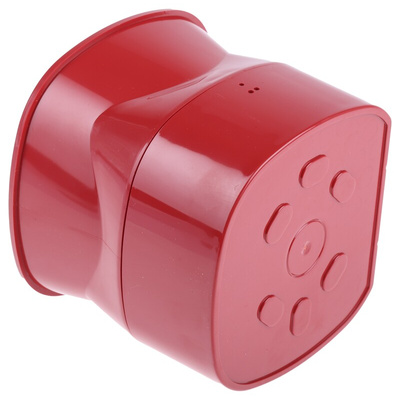

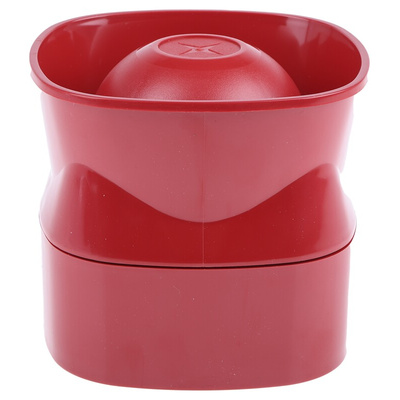

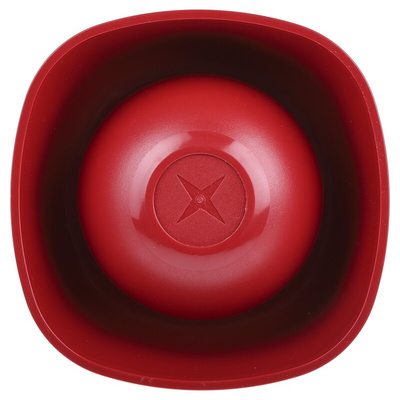

Eaton Red Electronic Sounder, 9 to 28V DC Supply Voltage, 120dB at 1 Metre - Symphoni Series - SY/HO/R

Need an effective method for sounding an alarm or attracting people's attention? This red electronic sounder from Eaton's line is a high-performance audible signalling device. The bright red colour is easy to spot and identify. It's an economic unit with low current consumption, needing a supply voltage of just 28V. The loud 120dB siren immediately alerts people to danger or a change in the status quo. You can install and use this product in noisy environments such as industrial facilities and busy commercial settings.

• IP21C (ingress protection) rating indicates the unit is touch-proof and prevents electric shocks
• Comes with 32 customisable tones, including 6 tones certified for use in fire safety systems
• Wide operating temperature range from -10°C to +55°C for indoor and outdoor use
• Acrylonitrile butadiene styrene (ABS) plastic housing is tough and resists corrosion for a longer lifespan

Why do I need an electronic sounder with multiple tones?

Multiple tones let you customise and vary the alerts you send out. Industrial setups often need different alerts for different events. A shipyard, for instance, uses one tone for alerting people to approaching or docking vessels, while another sounds the alarm for moving vehicles or cranes.

Note

Eaton formerly known as Fulleon

Fulleon Symphoni High Output Sounder - Datasheet

Fulleon Symphoni High Output Sounder - Instructions Sheet

Catalogue - Fulleon Fire Alarm Devices
