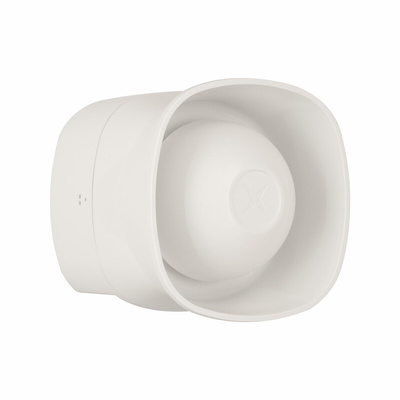

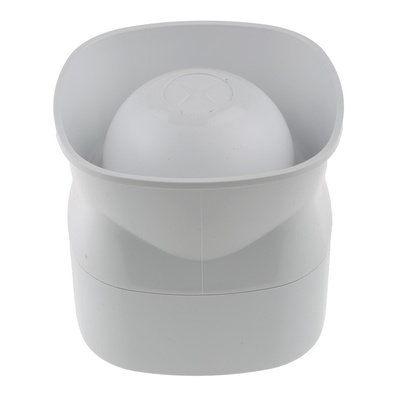

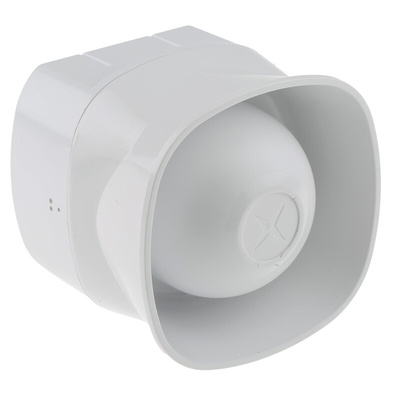

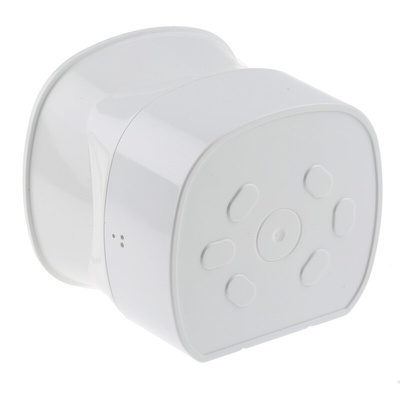

SY/HO/W, Eaton Surface Mount Electronic Sounder, 9 → 28 V dc, 120dB at 1 m, IP21C, DC, 32-Tone

Fulleon Symphoni High Output Electronic Sounder

The Fulleon high output symphoni sounder is multi-tone with up to 32 audible alarm tones delivering sound levels up to 120 dB. The symphony sounder is an ideal solution to any signally needs and is suitable for use in open areas that have a high noise level such as industrial environments. This sounder works on a supply voltage of 28 V DC and offers efficient low current consumption.

Features and Benefits

• High sound output up to 120 decibels (dB) @ 1 metre
• Automatic synchronisation
• 32 tone electronic sounder (user selectable)
• Suitable for a 2-stage alarm
• Volume control as standard
• Ideal for high noise environments
• Alert and alarm function
• Six tones certified for fire use
• Surface-mounted installation
• Suitable for outdoor use
• Available in red or white
• IP66 weatherproof option

Note: Where ranges of values are specified for sound output levels and current consumption, the actual figures will depend on the tone chosen and the volume setting is adjustable.

Applications

• Fire alarms
• Security systems
• Process control
• Open and Noisy areas

Note

Where a range of values are specified for sound output levels and current consumption, the actual figures will depend on the tone chosen, and the volume setting where adjustable.

Standards

EN54-3 (CPD)

Approvals

VdS

Eaton White Electronic Sounder, 9 to 28V DC Supply Voltage, 120dB at 1 Metre - Symphoni Series - SY/HO/W

Alert people to danger or changes in their surroundings with this electronic sounder from Eaton . The multi-purpose audible signalling device comes with 32 different tones so you can set up and customise different alerts. A loud 120dB (decibel) siren attracts attention in large and high-noise-level areas. A wide operating temperature range from -10°C to +55°C makes the unit versatile and suitable for use in indoor and outdoor environments. You can use this electronic sounder as an alarm in schools, multi-occupier buildings and shipyards.

• 28V DC supply voltage ensures low current consumption
• IP21C (ingress protection) rating indicates the unit is touch-proof to prevent risk of electric shocks
• Plastic acrylonitrile butadiene styrene (ABS) is durable and resists corrosion for a long service life
• Six designated and certified tones for fire alarm purposes

Why is a sounder beacon needed in public settings?

The developers, owners and employers of public areas such as offices, shops and residential complexes have a legal responsibility to implement safety measures. A sounder beacon is an essential safety measure that sounds the alarm in an emergency, like a fire, or with changes in the immediate environment, such as approaching heavy vehicles.

Note

Eaton formerly known as Fulleon

Approvals

VDS approved

Standards

EN54-3 (CPD)

Symphoni Data Sheet

Catalogue - Fulleon Fire Alarm Devices
