SQ/R/C/S, Eaton Surface Mount Siren, 10 → 28 V dc, 93dB at 1 m, IP54, DC, 32-Tone

Fulleon Squashni Electronic Sounder - Fire Alarm Detector Base

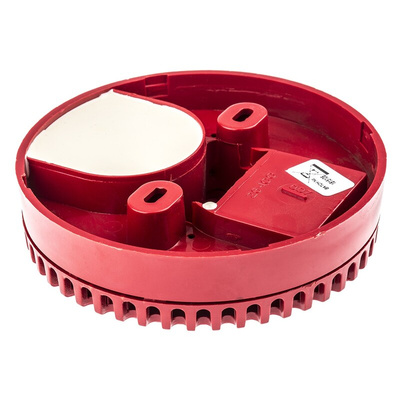

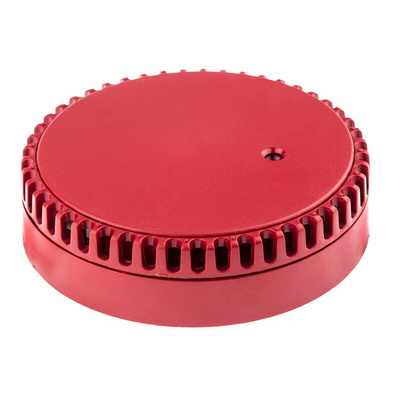

The slim-line Squashni electronic sounder from Fulleon combines the qualities of the market-leading Roshni conventional sounder in the form of a flat base sounder with the option to include a fire detector. The sounder is compatible with almost any European fire detector and the flat deck design can be used with beacons to provide a compact audio and visual signalling device with the added benefit of a single installation point. If combined with a detector or beacon the housing has been colour matched in red and white with leading manufacturer devices to seamlessly blend the look and feel into a single electronic signal and warning system.

Features and Benefits

• Designed to be used a fire alarm sounder with the addition of a fire detector
• Flat fixing platform to enable mounting beacons directly to the sounder
• Automatic synchronisation
• 32 user-selectable audible alarm tones
• 93 dB sound level output
• Volume Control (20 dB)
• Tones compatible with Roshni, Askari and Flashni sounders
• 1 or 2 stage alarm
• IP54 rating (530-6000, IP21 530-5906 )
• Available in red or white

Note

Where a range of values are specified for sound output levels and current consumption, the actual figures will depend on the tone chosen, and the volume setting where adjustable.

Standards

CPD

Note

Eaton formerly known as Fulleon
