Kyoritsu KEW8031F Phase Rotation Tester CAT III 600V CAT III 600 V 60Hz 600V ac, Model KEW8031F RS Calibration, Индикатор чередования фаз

5311973
Номер производителя: KEW8031FПроизводитель: Kyoritsu
Цена за шт.
79278.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

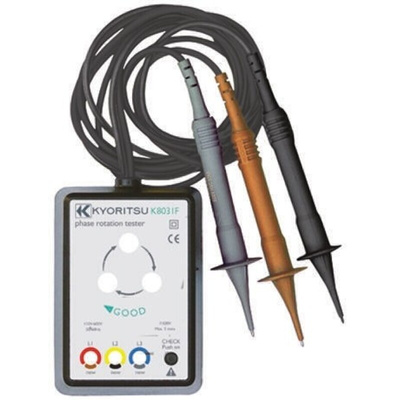

KEW8031F Phase Rotation Tester

The 8031F tester indicates phase sequence by a rotating disc which gives clear feedback. A system of lamps also indicates open circuit phases.
Small, lightweight and compact in design with no exposed metal parts. A test button is incorporated in the design.
The unit is supplied with 1.5 m GS38 fused test lead with probe clip and crocodile clip options. The unit has a wide operating range from 110 V → 600 V and 40 Hz → 400 Hz.

Phase indicator designed to check the presence of open phase and phase sequence by rotating disk lamps
Wide check range of 3 phase power source from 110 V → 600 V
Colour coded to conform with both old and new EU colour regulations
1.5 m fused leads with screw-in crocodile clips
Operational Voltage: 110 V ac to 600 V ac
Time limit for continuous >500 V: Within 5 min
Frequency Response: 40 Hz to 200 Hz (AC 110 to 200 V) 40 Hz to 400 Hz (AC 200 V to 600 V)
Safety Standard: IEC61010 to1 CATIII 600 V Pollution Degree 2

Supplied with

GS38 test leads, carry pouch and instructions.

Kyoritsu Phase Rotation Tester

The Kyoritsu phase rotation indicator has a voltage range of 110V to 600V and a frequency range of 40Hz to 400Hz. The 8031F tester indicates the phase sequence by a rotating disc which gives clear feedback. A system of lamps also indicates open circuit phases. Small, lightweight and compact in design with no exposed metal parts. A test button is incorporated into the design. The unit is supplied with 1.5 m GS38 fused test lead with probe clip and crocodile clip option, a carry pouch, and an instruction manual.

Features and Benefits

Wide check range of 3-phase power source
Colour coded to conform with both old and new EU colour regulations
Time limit for continuous >500V: Within 5min
Frequency response: 40 Hz to 200 Hz (AC 110V to 200V) 40Hz to 400Hz (AC 200V to 600V)

Applications

Feed motors
Drives
Electrical systems

Certifications

IEC61010-1
CATIII 600 V Pollution Degree

Техническая спецификация
pdfType 8031 Phase Indicator Data Sheet
Вес:
350гр
Высота:
40мм
Длина:
106мм
Калибровка:
RSCAL
Категория безопасности:
CAT III 600 В
Категория безопасности напряжения:
600В
Категория безопасности уровня:
CAT III
Категория перенапряжения:
CAT III 600В
Максимальная частота:
60Гц
Максимальное напряжение:
600В перем. тока
Минимальная частота:
50 Гц
Минимальное напряжение:
110В
Модель р:
KEW8031F
Размеры:
106 x 75 x 40мм
Соединение - тип:
Test Lead
Ширина:
75мм
