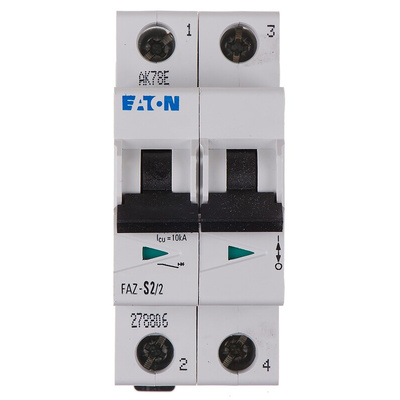

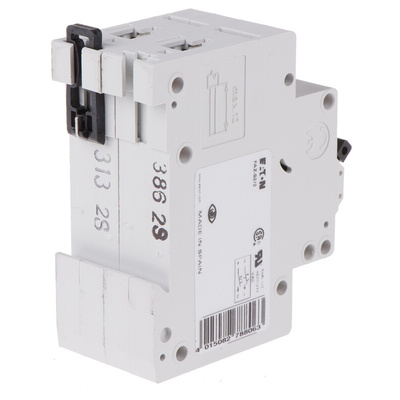

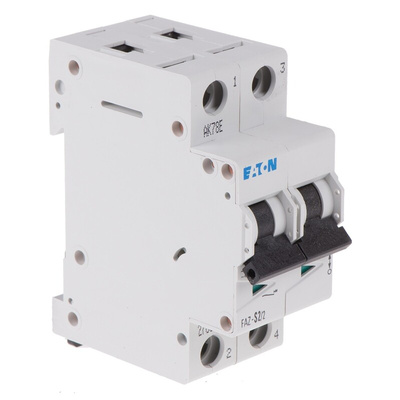

278806 FAZ-S2/2, Eaton xEffect MCB, 2P, 2A Curve S, 230V AC, 60V DC, 10 kA Breaking Capacity

Eaton MCB, 2 Poles, 2A Current Rating - FAZ Series - 278806 FAZ-S2/2

Break free from current surges in your circuit using this MCB from Eaton. When it senses a short circuit or current overload, it automatically trips, cutting off the power supply to minimise the risk of damage to downstream machinery. A type S tripping curve means it acts with a time delay that helps to prevent accidental tripping. Thanks to its robust lifespan of over 10,000 operations, you can rely on this unit to give your circuits a break from hazards in the long term. It's a smart choice for protecting domestic and commercial electrical panels.

Features & Benefits

• Breaking capacity of 10kA to withstand heavy current surges
• IP40 rating when fitted, meaning it's protected against objects larger than 1mm in size
• Twin-purpose terminals enable cable connection from the top or bottom for flexibility
• Wide operating temperature range between -40°C and +75°C for use in demanding environments

How do I mount this MCB?

You can mount this MCB by simply clipping it onto a DIN rail, meaning there's no need to reach for your toolkit.

Note

Eaton formerly known as Moeller

Standards

IEC/EN60947-2

Catalogue

Datasheet - 278806 FAZ-S2/2

Instruction Sheet - 278806 FAZ-S2/2
