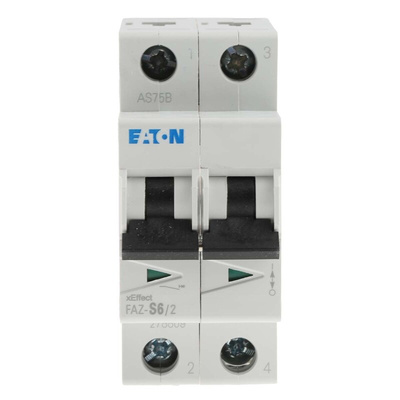

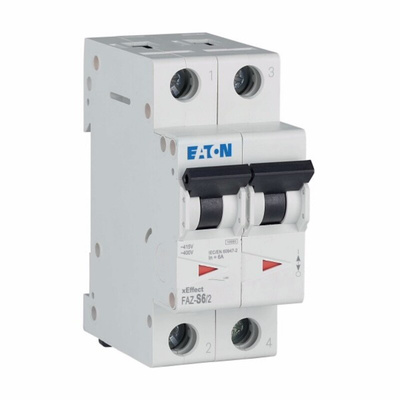

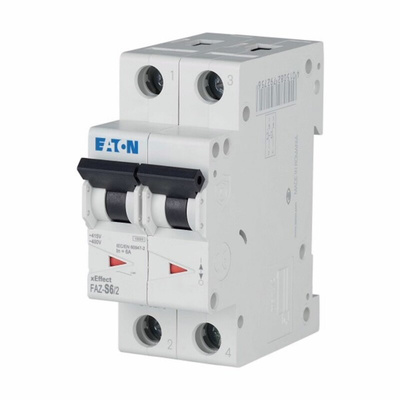

278809 FAZ-S6/2, Eaton xEffect MCB, 2P, 6A Curve S, 230V AC, 60V DC, 10 kA Breaking Capacity

Eaton MCB, DIN Rail Mount, 4.4W Heat Loss - FAZ Series - 278809 FAZ-S6/2

Use this MCB from Eaton to stop overcurrent from damaging your machines. It has two poles to protect two conductors at once, making it easy to expand your safety system. As it has a type-S tripping characteristic, you're assured of high-capacity switching, as the device breaks the circuit when the current rises 13 to 17 times higher than its 6A rating. The breaker's low 4.4W heat loss means it's an energy-efficient option. Use it to protect power supplies connected to high-current hardware like welding equipment.

Features & Benefits

• Service life of over 10,000 electrical cycles for long-term protection
• Quickly resets with front-mounted toggle switches for convenient restarts after faults
• Switching capacity of 10kA handles substantial current spikes
• Wide operating temperature range between -40°C and +75°C for use in tough conditions

How do I mount this MCB?

This MCB clips onto industry-standard DIN rails, making installation quick and simple.

What voltages can I use this MCB with?

This unit supports AC voltages up to 400V and DC supplies up to 48V per pole, so it's a versatile safety device.

Note

Eaton formerly known as Moeller

Standards

IEC/EN60947-2
