R-7812-0.5, Recom Switching Regulator, Through Hole, 12V dc Output Voltage, 15 → 32V dc Input Voltage, 500mA Output Current,, Импульсные стабилизаторы

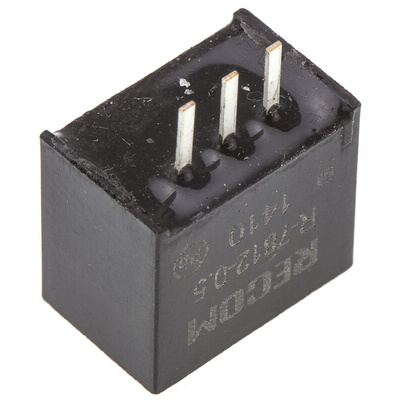

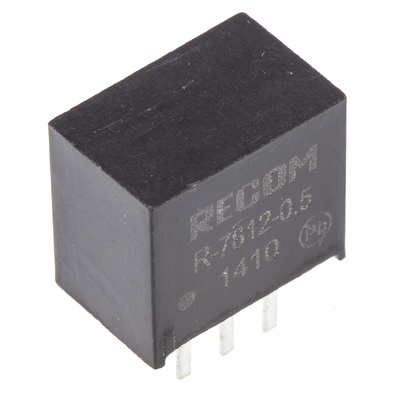

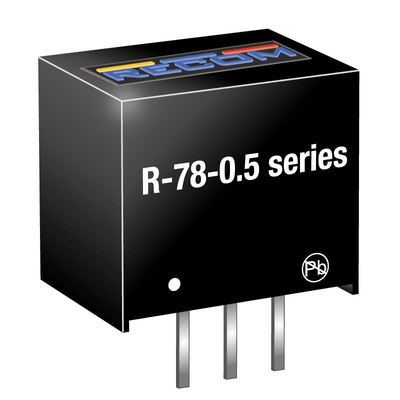

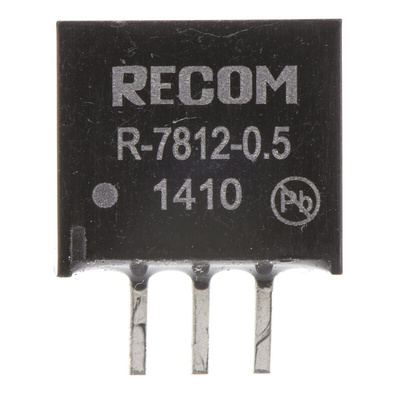

RECOM Switching Regulator, Non-Conductive Plastic, 25mV Pk-Pk Ripple and Noise - R-78xx Series - R-7812-0.5

Need a reliable way to protect your electric equipment from over-voltage and under-voltage conditions? Turn to this switching regulator from RECOM. It's designed to convert input DC voltage supplies between 15 and 32V DC to a safe output voltage of 12V DC. The non-conductive plastic body offers insulation protection to prevent overheating and ensure you're shielded from electric shocks in demanding conditions. For added safety, this unit also comes with short-circuit protection to help prevent damage caused by potentially harmful current supplies.

Features & Benefits

• Low ripple and noise of 25mV Pk-Pk for clear signal quality
• Through-hole mounting for hassle-free installation
• Ambient operating temperature range between -40°C and +85°C to withstand demanding conditions
• Pin-out compatible with LM78xx linear regulators for versatility
• Mean time between failures of 21,098,000 hours for long-lasting use

Applications

• Automotive engineering
• Mining equipment
• Agricultural equipment
• Telecommunications

How efficient is this switching regulator?

This switching regulator has an efficiency rating of 97%, so produces minimal heat through wasted energy. This means you won't need to install a heatsink on your panel, saving space.

RECOM extends its successful R-78 Range with three new series

Datasheet
