1654549, Phoenix Contact VS-09-PROFIBUS-SC 9 Way 45 ° D-sub Connector

Phoenix Contacts D-Sub Connectors

A common application for our range of Phoenix Contacts D-Sub Connectors is to make a connection between a monitor and a PC, this is why they are increasingly becoming a household essential. Our D-Sub Connectors are a type of electrical connection that provides power and point-to-point communications between two devices or machines across a wealth of products.

Features & Benefits

• IP67 rating – What does this mean? With an IP67 rating, the connector can be dropped into a body of water up to a meter deep for up to half an hour, also, the connector is protected from dust.
• Once the terminating resistor is switched in, the output circuit is disconnected to aid fault finding through segmenting the network.
• Switchable terminating resistor
• 9 positions
• RoHS compliant– What does this mean? This initialisation stands for Restriction of Hazardous Substances, this restricts the use of specific hazardous materials found in electrical and electronic products.
• Grey in colour, offering a professional and aesthetically pleasing finish
• Our range features a variety of IP67 Fieldbus connector kits, please browse our other D-Sub Connectors to find the right one for you.

Phoenix Contact D-Sub Connector, 9 Contacts, 1A Current Rating - VS-09-PROFIBUS-SC - 1654549

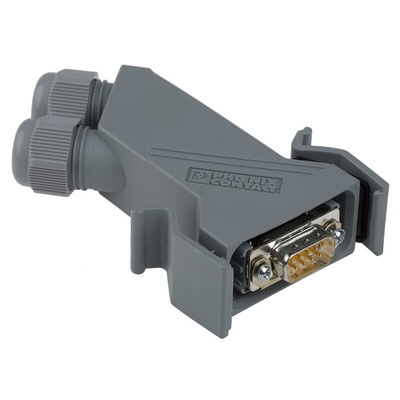

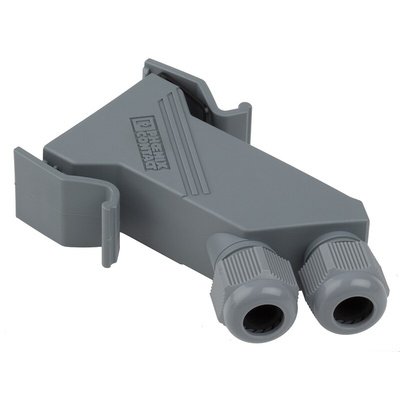

Transfer data from a cable to a PCB with this D-sub connector from Phoenix Contact. The unit gets its name from the D-shaped metal shield that protects the 9 contact pins from damage. Once pushed into place, the connector screws down to protect it against industrial vibration or rough handling.
An IP67 (ingress protection) rating, indicates the unit is protected against dust and can be dropped into a body of water one metre deep for 30 minutes before suffering damage. Its PA housing material resists moisture, weak chemicals and industrial lubricants to prevent corrosion wear.
As a PROFIBUS cable, it's commonly paired with a PLC used in industrial automation applications to assist in data transferral to control modules. D-sub connectors are also compatible with serial communications, computer networks and video outputs.

• Electromagnetic compatibility protection to prevent signal interference and corrupted data transmission
• Operating temperature range between -20°C and +75°C for use in demanding conditions
• 45° body orientation so it's easy to fit connected cables around tight corners
• Compact dimension of 24 (W) x 59 (H) x 107mm (L) for installation in constricted areas

BUS connectors

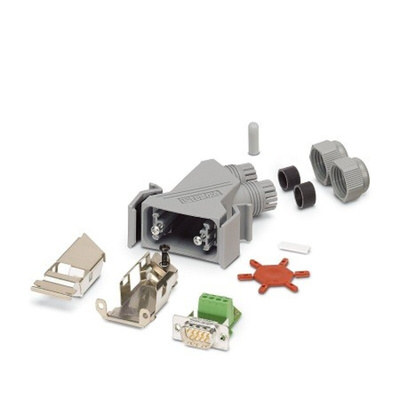

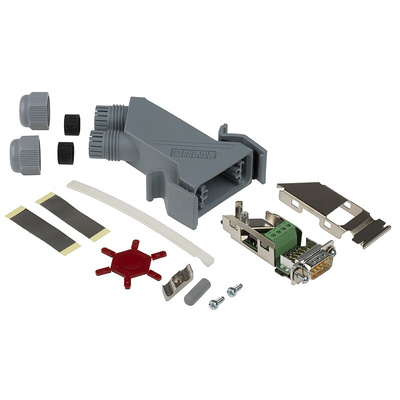

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief

Datasheet 1654549
