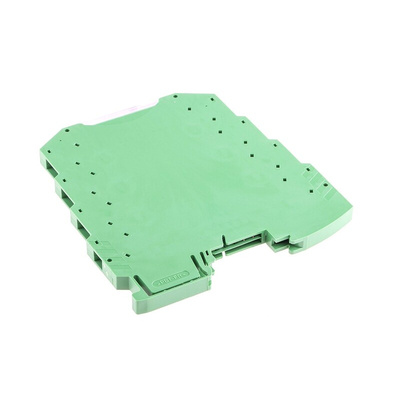

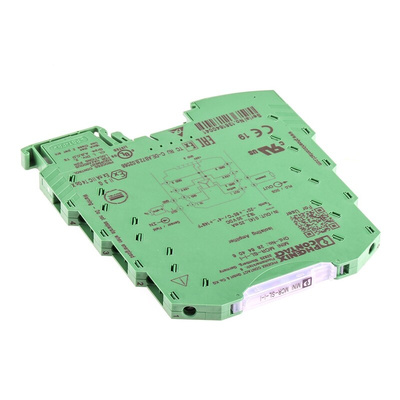

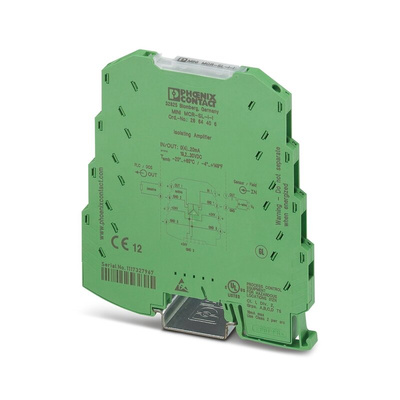

2864406, Phoenix Contact 3RS7002 Series Signal Conditioner, Current Input, Current Output, 19.2 → 30V dc Supply, ATEX

Phoenix Contact Signal Conditioner, 50V AC/DC Rated Insulation Voltage, 100Hz Limit Frequency - MINI MCR-SL-I-I - 2864406

Are you struggling with miscommunication in your control equipment? Smooth out your analogue transmissions with this signal conditioner from Phoenix Contact. It isolates, amplifies and then filters weak signals to boost performance across your system. Thanks to a 3.2ms transmission speed, you'll get the near-instant responses needed for control-sensitive applications. With a low 20mVPP ripple and noise, EMI and RFI issues are minimal to give you peace of mind during operation.
You can power the module through its terminal blocks or a DIN rail connection to suit your setup – it handles a broad input voltage range between 19.2 and 30V DC. A maximum current consumption of 20mA means this is an energy-saver that keeps usage low.

Features & Benefits

• IP20 rating indicates it's touch-proof and safe to handle during installation and maintenance
• Runs reliably in demanding temperatures from -20°C to +65°C
• Space-saving dimensions of 6.2 (W) x 101.2 (L) x 93.1mm (H) take up minimal space
• Mounts on a standard 35mm DIN rail for quick hookup to your existing setup
• Light 71.1g weight won't put unnecessary strain on your system

2864406 Datasheet

2864406 Instructions

Line Drawing - 2864406
