2864684, Phoenix Contact 3RS7002 Series Signal Conditioner, Voltage Input, Voltage Output, 19.2 → 30V dc Supply

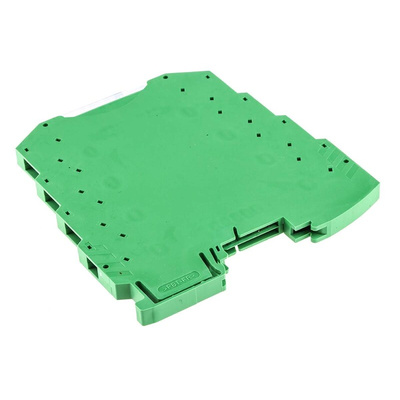

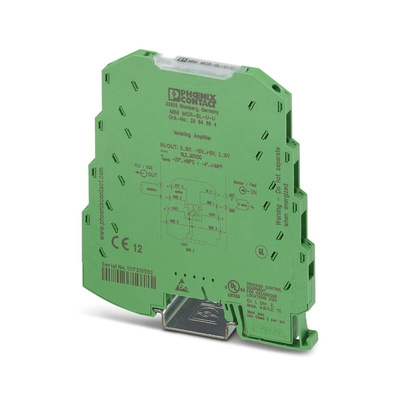

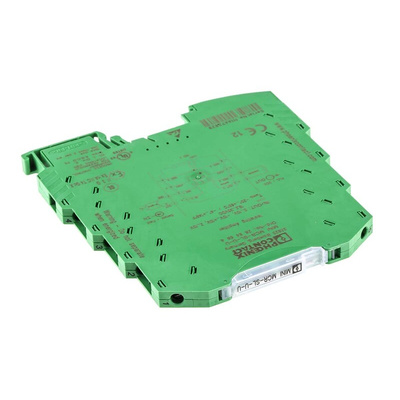

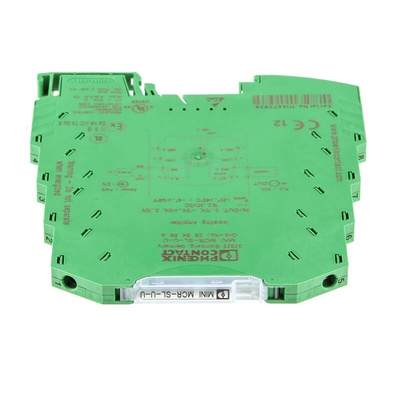

Phoenix Contact Signal Conditioner, Isolation Amplifier Type, 102.5mm Height - MINI MCR-SL-U-U - 2864684

Get your sensor signals in top shape with this signal conditioner from Phoenix Contact. It prepares them for processing by data acquisition systems and other monitoring devices. As a 3-way isolation amplifier module, it provides electrical isolation between system inputs, outputs and power to keep signalling glitch-free. This means that your measuring equipment is protected against noise, ground loops and spikes in voltage.
You'll find this conditioner particularly useful in applications where you need to ensure a clear signal despite a busy electrical environment, such as in industrial automation setups, factories and processing plants.
You can mount it on its own on a DIN rail or in sequence with other modules to meet the needs of your system. With an operating temperature range between -20°C and +65°C, it's tough enough for challenging workplaces.

Features & Benefits

• Supply voltage between 19.2 and 30V DC for broad compatibility
• Light weight of only 90g, making it easy to handle and mount on thin-gauge material
• Compact dimensions of 93.1 (H) x 6.2 (W) x 102.5mm (D) fit into a standard-size enclosure

Datasheet

Instruction Sheet - 2864684

Line Drawing - 2864684
