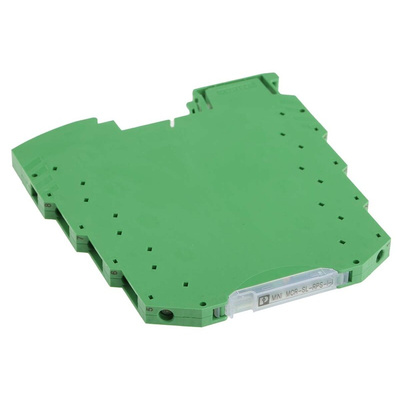

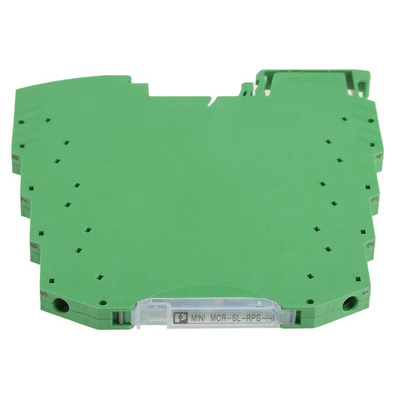

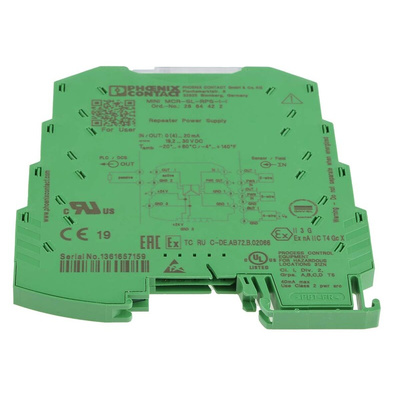

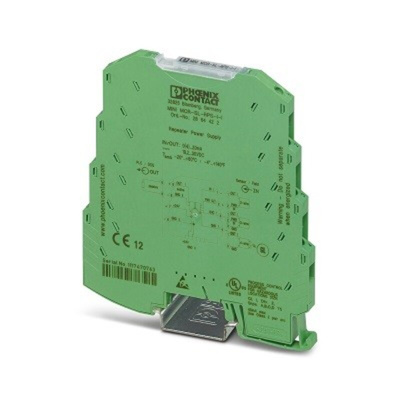

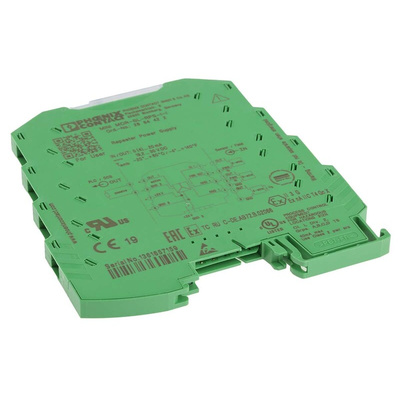

2864422, Phoenix Contact MINI MCR Series Signal Conditioner, Current Input, Current Output, 24V dc Supply

Phoenix Contact Signal Conditioner, IP20 Rating, 28mA Maximum Output Current - MINI MCR-SL-RPS-I-I - 2864422

Keep your data synchronised with this signal conditioner from Phoenix Contact. It acts as a power supply for transmitters in the field and maintains signal integrity by electrically isolating the input from the output. Three-way isolation ensures your signals stay unaffected by external electrical influences or fluctuations, providing stable performance without any glitches. Compact dimensions of 6.2 (W) x 93.1 (H) x 102.5mm (D) make this a suitable option for setups with limited space.
As the conditioner is safely housed in PBT, it's protected against impacts and chemicals for reliability in challenging environments. There's no need to reach for special tools during installation – connections are made quickly and securely using screws. The device boasts a broad input and output range between 0 and 20mA, so it's compatible with industry-standard transducers. You'll find it commonly used in applications such as process control and environmental monitoring.

Features & Benefits

• IP20 rating indicates it's resistant to objects over 12.5mm, so it's finger-safe
• Performs safely in temperatures between -20°C and +60°C
• DIN rail mounting means you can set it up in a snap

Datasheet 2864422

Datasheet - 2864422

Line Drawing - 2864422

Manual - Power Manual For MACX Analog, MACX Analog Ex, MACX PL, MINI Analog, and MINI Analog Pro Signal Conditioners
