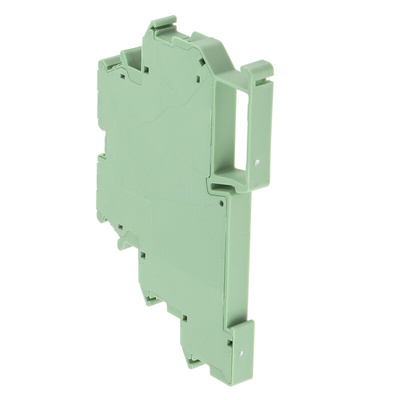

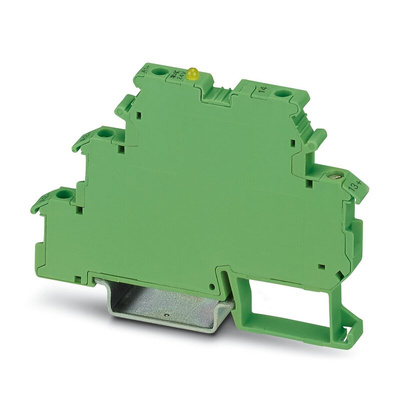

2941374, Phoenix Contact Optocoupler, Max. Forward 24 V, Max. Input 7 mA, 80mm Length, DIN Rail Mounting Style, Оптопара

Phoenix Contact Opto-Couplers with Solid State Relay Output

These DIN rail mount opto-couplers from Phoenix Contact provide an ideal means of interfacing on/off signals to, or from, equipment, whilst providing electrical isolation between their own inputs and outputs. In other words, these may be used to protect equipment by electrically isolating its inputs, outputs, or both. The dc/ac and ac/dc versions also provide a means of interfacing (whilst isolating) ac and dc control voltages.

Features and Benefits

• Dc in/Dc out, Dc in/Ac out and Ac in/Dc out versions available
• Versions with switching speeds up to 100kHz available
• 2.5kVac input to output isolation
• LED status indication
• Module width 6.2mm
• Operating temperature range: -20 to +60°C

Standards

IEC 60 664, IEC 60 664A, DIN VDE 0110

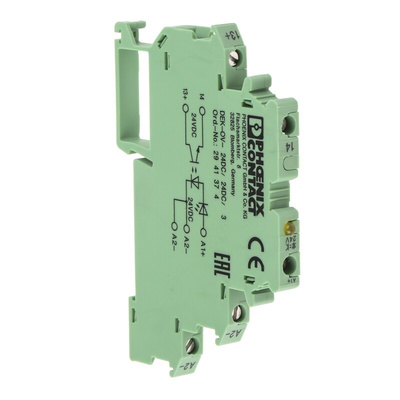

DEK-OV-24DC/24DC/3

A power opto-coupler with solid-state relay terminal block from Phoenix Contact with an integrated output protective circuit. The DIN rail mountable relay has a nominal input voltage of 24 Vdc and an output voltage of 3 Vdc to 30 Vdc.

Datasheet 2941374
