SP 8-100, Lascar Digital Voltmeter DC, LED Display 3.5-Digits 0.1 %, Вольтметр

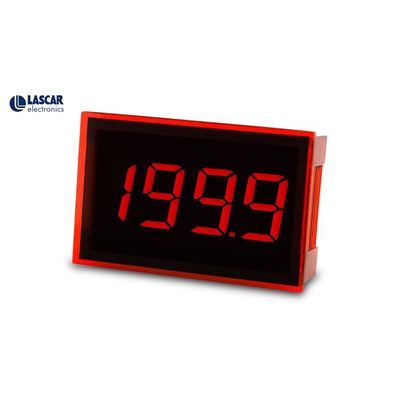

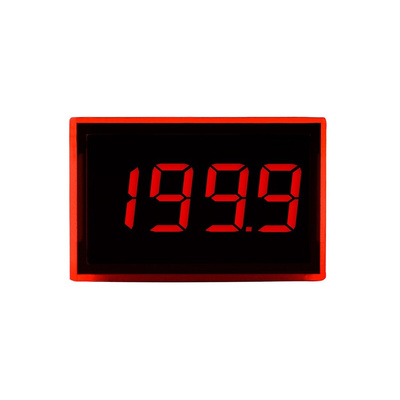

Splash-Proof Ultra Low Profile LED Voltmeter

The SP 8-100 features a 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user selectable.

The SP 8-100 features a negative rail generator which enables the meter to measure signal reference to its own power supply 0V. Its bright red LED display provides excellent readability in low light conditions.

Easily fit the device into a panel using the fixing clip provided. Its low cost means it will suit high and low volume applications. The design of the panel meter's housing and seal ensures splash proofing in many applications.

Features and Benefits

14.2mm digital height
200mV d.c. full scale reading
50mA @ +5V d.c. power supply
Auto-zero and Auto-polarity
Programmable decimal points
Bright red LED display
Splash proof

LED, 11 to 19mm Digit Height

All meters have an accuracy of ±0.1% ( ± 1 count).

SP8-100 Datasheet
