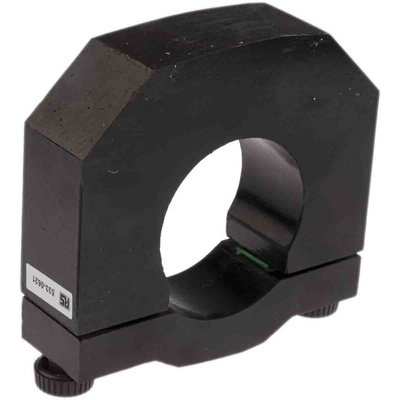

HOBUT Split-Core Current Transformer

The HOBUT multi-ratio split-core current transformer has four or five built-in current ratios in one product. It is suitable for 200A to 1000A using cable primaries and 5A secondary current. The split-core design allows installation into existing networks without disconnecting cables or busbar circuits. The multi-ratio feature is ideally suited to stockists, distributors and contractors who need instant access to popular CT ratios up to 1000A in two stock items.

Features and Benefits

Can be installed into existing systems without disconnecting cables or busbar connections
Clip-fit
Continuous current is 1.2 x rated current
Current ratios are 200:5, 400:5, 600:5, 800:5 and 1000:5
Frequency ranges between 50Hz and 60Hz
Insulation rating is 3kV for 1 minute
Overall height is 125mm, width of 132mm and depth of 38mm
Operating temperature ranges between -30°C and 85°C

Applications

Analogue meters
Digital meters
Energy meters

Certifications

IEC 185
BS7626
BSEN 60044-1
IEC 60044-1
CE certified
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
