0304 05, Lumberg 5 Pole Din Socket, DIN EN 60529, 60 V ac IP68, Разъем

0304 Chassis Sockets

Front mounted with threaded joint and solder terminals

Standards

IEC60130-9

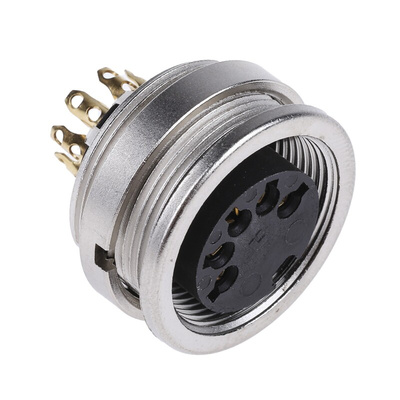

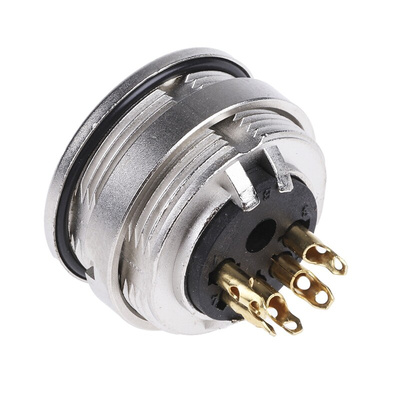

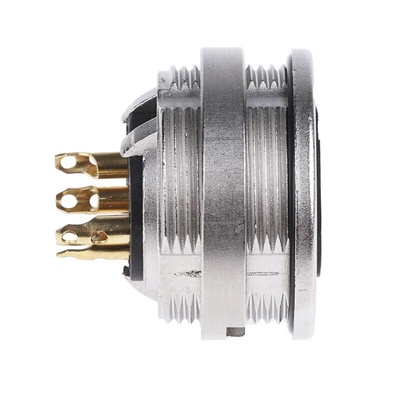

Lumberg DIN Socket

The Lumberg DIN socket is a 5-pole, female, panel mount connector with an electrical rating of 60VAC and 5A. It is round in shape with pins arranged in a circular pattern within the connector. It has chassis, cable mount plugs and sockets up to 12-way. The connector’s body is made from zinc alloy material with brass contacts and silver or gold finish.

Features and Benefits

360° shielded design
Straight body orientation
Contact resistance is less than or equal to 5mohm
Front mount with threaded joint
Long bend protection
Operating temperature ranging between -40°C and 85°C
Solder terminals
Waterproof

Applications

Automation technology
Control engineering
Medical instrumentation
MIDI instruments
PC keyboards
Portable video devices and projectors

Certifications

IEC60130-9
IP68 rated

Approvals

IEC60130-9

Lumberg Connectors Standard and SWUM™ - IP68

Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12 way, with or without 360° shielding. Typical applications are control engineering, automation technology and medical instrumentation.

0304 Range Connectors Data Sheet
