0322 12, Lumberg 12 Pole Din Socket, DIN EN 60529, 3A, 60 V ac IP68, Screw On, Female, Cable Mount, Разъем

0322 Cable Sockets

Threaded joint and solder terminals
360° shielded

Standards

IEC60130-9

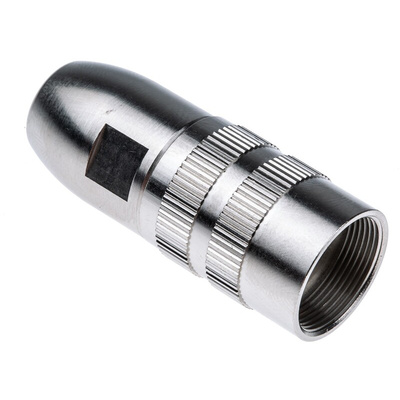

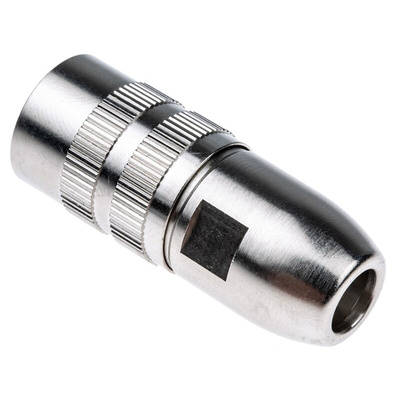

Lumberg DIN Socket

The Lumberg DIN socket is a 12-pole, female, cable mount connector with an electric rating of 60VAC and 3A. It is round in shape with pins arranged in a circular pattern within the connector. It has chassis, cable mount plugs and sockets up to 12-way. The body of connector is made from zinc alloy material with brass contacts and silver or gold finish. This circular connector socket is designed to be mounted on printed circuit boards and is also suitable for locking.
Lumberg Connectors Standard and SWUM™ - IP68
Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12-way, with or without 360° shielding.

Features and Benefits

360° shielded design
Contact resistance is less than or equal to 5Mohm
Long bend protection
Operating temperature ranging between -40°C and 85°C
Solder terminals
Straight orientation with a threaded joint

Applications

Automation technology
Control engineering
Medical instrumentation
MIDI instruments
PC keyboards
Portable video devices and projectors

Certifications

IEC60130-9
IP68 rated

Approvals

IEC60130-9

Lumberg Connectors Standard and SWUM™ - IP68

Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12 way, with or without 360° shielding. Typical applications are control engineering, automation technology and medical instrumentation.

Circular connectors, Series 0322 - Data Sheet
