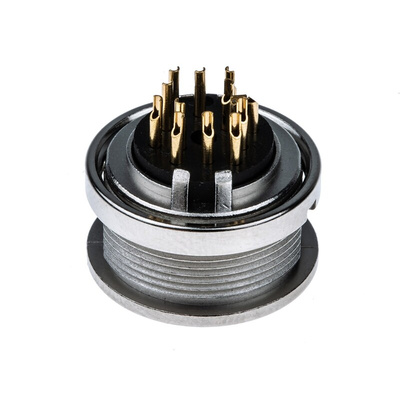

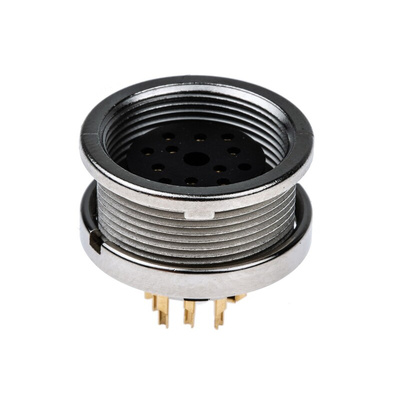

KFV 120, Lumberg, KFV 12 Pole M16 Din Socket, DIN EN 60529, 3A, 60 V ac IP40, Female, Panel Mount, Разъем

KFV Chassis Sockets

Front mounting with threaded joint and solder terminals
533-2728 is domino layout (with pin in four corners and a middle pin)

Standards

IEC60130-9

Lumberg DIN Connector

The Lumberg DIN connector is a KFV series, 12-pole, female, din plug socket with an electrical rating of 60VAC and 5A. It is round with pins arranged in a circular pattern within the connector. It has chassis, cable mount plugs and sockets up to 12-way.

Features and Benefits

• 533-2728 is domino layout (with pin in four corners and a middle pin)
• 360° shielded
• Contact resistance ≤5mohm
• Front mount with threaded joint
• Operating temperature ranges between -40°C and 85°C
• Panel mount device
• Solder terminals

Applications

• Automation technology
• Medical instrumentation

Certifications

• EN 60529
• IEC60130-9
• IP40 rated

Lumberg Connectors - IP40

Chassis and cable mount plugs and sockets up to 12 way. Typical applications are control engineering, automation technology and medical instrumentation.

Datasheet
