17676766-105, Curtis Digital Voltmeter, LED Display, Измеритель состояния батареи

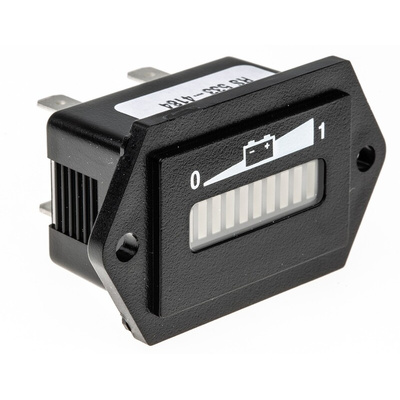

Curtis Battery Fuel Gauge

The Curtis 24VDC LED battery meter is an inexpensive, one-piece, easy to install battery fuel gauge. It is completely solid-state and provides a reliable, accurate, and easy to read display of battery state-of-charge. It has two reset methods Open Circuit Reset (OCR) upon reconnection to the battery when cell voltage =2.09V and High Voltage Reset (HVR)when unit measures 2.35V/cell for 6 continuous minutes. The model 906 is available in 6-panel mount packages and a printed circuit board mounted module for custom dash panel applications.

Features and Benefits

10-bar LED displays the state-of-charge successively
10kohm impedance
Tricolour LED array
70% depth of discharge, a flashing LED signals an ’energy reserve’ alert
80%, alternately flashing LEDs provides an ’empty’ status warning
Key switch activated LED display (state-of-charge is monitored as long as 906 is connected to battery)
Model 906 is compact and easily installed in panel cut-outs as small as 36.8mm x 24.1mm, with as little as 35mm behind panel clearance needed, see dimensions of various case styles
Principal circuits are integrated in a single chip for long-life reliability
Recognizes improperly charged battery

Applications

Commercial cleaning equipment
Electric bicycles
Electric marine motors
Golf cars
Medical devices
Mobility aids

906 Manual

Battery Fuel Gauge Model 906
