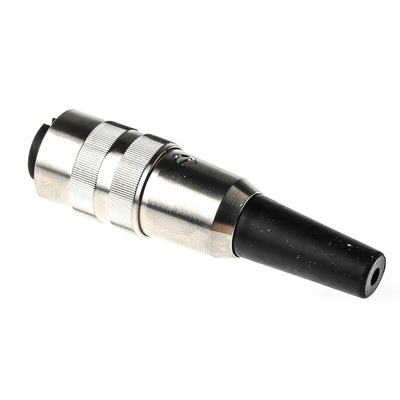

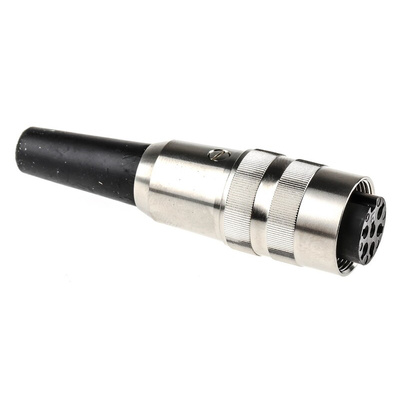

KV 60, Lumberg, KV 6 Pole M16 Din Socket, DIN EN 60529, 5A, 250 V ac IP40, Female, Cable Mount, Разъем

KV Cable Sockets

Straight version with threaded joint and solder terminals
533-2778 is domino layout (with pin in four corners and a middle pin)

Standards

IEC60130-9

Lumberg DIN Connector

The Lumberg DIN connector is a KV series, 6-pole, female, socket with an electrical rating of 250VAC and 5A. It is round with pins arranged in a circular pattern within the connector. The connector’s body is made from zinc alloy material with brass contacts with silver or gold finish. It has chassis, cable mount plugs and sockets up to 12-way. This circular connector socket is designed to be mounted on printed circuit boards and is also suitable for locking.

Features and Benefits

Contact resistance is ≤5mohm
Front mounting device
Screw on mating type
360° shielded
Solder terminals
Straight orientation with a threaded joint
Operating temperature ranging between -40°C and 85°C

Applications

Automation
Control engineering
Medical instrumentation
MIDI instruments
PC keyboards
Portable video devices and projectors

Certifications

IEC60130-9
IP40 rated

Approvals

IEC60130-9

Lumberg Connectors - IP40

Chassis and cable mount plugs and sockets up to 12 way. Typical applications are control engineering, automation technology and medical instrumentation.

kv connectors range Data Sheet
