SV 40, Lumberg, SV 4 Pole M16 Din Plug, DIN EN 60529, 5A, 250 V ac IP40, Screw On, Male, Cable Mount, Разъем

SV Cable Plugs

Straight version with threaded joint and solder terminals

Standards

IEC60130-9

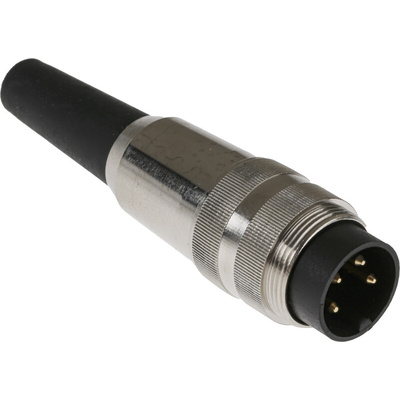

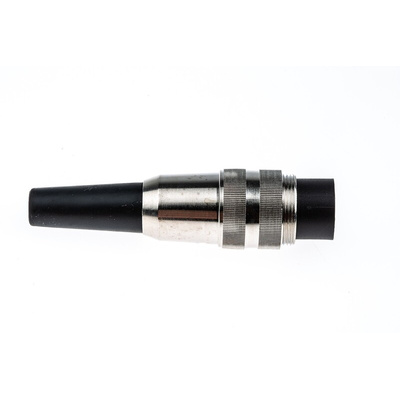

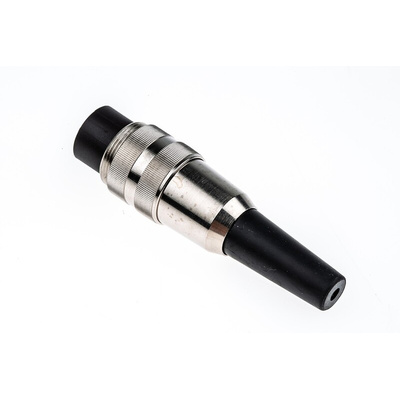

Lumberg SV Cable Plug

Brought to you by Lumberg, this SV series plug is DIN EN 60529 standard. Featuring robust nickel plated housing with a threaded M6 connector, this straight plug assures a secure mating that protects to IP40. This 4-pin DIN Connector plug has brass contacts with gold over silver plating, and has a current rating of 5 A. Fitted with solder terminals for secure cable retention, this circular connector also features a ground contact and has long bend protection.

Features & Benefits

DIN EN 60529 Standard
Polyamide GF Insulation Material
IP40 Protection
Rated Current: 5 A
Rated Voltage: 250 V ac
Wire Cross Section Area: 0.75 mm²

Product Application Information

DIN standard circular connectors have a broad range of applications, and are often used in medical instrumentation and control engineering.

Approvals

IEC60130-9

Lumberg Connectors - IP40

Chassis and cable mount plugs and sockets up to 12 way. Typical applications are control engineering, automation technology and medical instrumentation.
