606.3505-062, Scame IP66 Blue 1 x 2P + E, 3 x 2P + E Industrial Power Connector Adapter Plug, Socket, Rated At 16A, 240 V, Адаптер

5337492
Номер производителя: 606.3505-062Производитель: Scame
Цена за шт.
21278.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

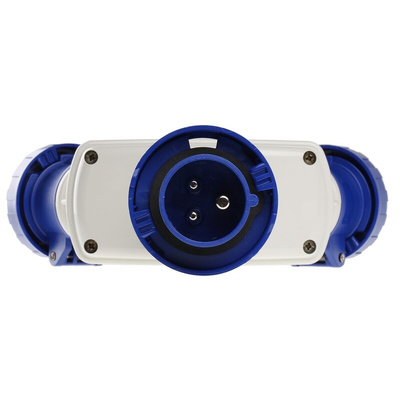

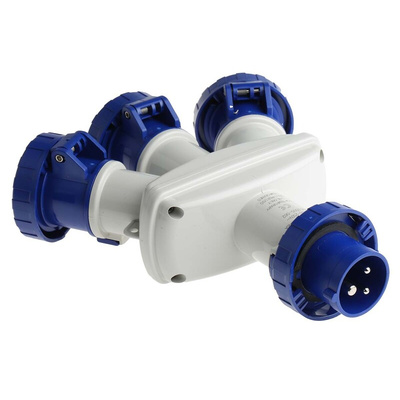

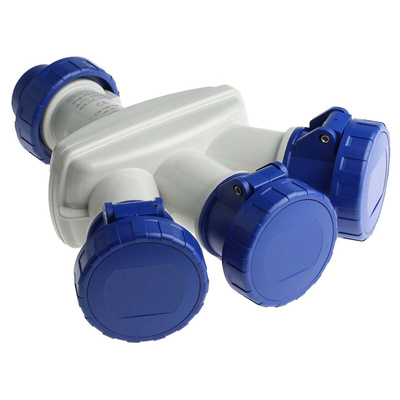

Scame IP66 Blue Industrial Power Connector Adapter, Rated At 16.0A, 240.0 V

Need to turn one IEC309-type round-pin socket into three sockets in a heavy-duty environment? This 2-pin plus Earth industrial power connector adapter from the Scame range is IP66 rated. This means the tough engineered plastic housing is dust-tight and will resist jets of water making it useful in a variety of settings, from construction sites to industrial plants.

Voltage rated at 240 V and current rated at 16 A, this industrial power connector adapter has an operating frequency of 50 Hz with an insulation voltage rated at 500/690 V. It can operate at temperatures between -25°C and +40°C, with a maximum temperature of +60˚C.

The adapter has been stringently tested to ensure it won't damage your equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). What's more, it also contains only minimal levels of hazardous substances (RoHS).

Features and Benefits

• Industrial power connector adapter
• Input plug is 1 x 2-pin + Earth IEC309 round-pin plug
• Output sockets are 2-pin + Earth IEC309 round-pin plugs
• Voltage rating of 240 V
• Current rating of 16 A
• Impact protection rated at IK06-IK09
• IP66 rated, protected from dust and powerful water jets

Техническая спецификация
pdf606.3505-062 Datasheet
Номинал тока:
16A
Номинальное напряжение:
240 В
Разъем/гнездо:
Plug, Socket
Степень защиты IP:
IP66
Формат полюса:
1 x 2P + E, 3 x 2P + E
Цвет:
Голубой
