NC3MXD25, Neutrik Cable Mount XLR Connector, Male, 50 V, 3 Way, Silver Plating, Разъем

X Series XLR Cable Connector Trays

XLR connectors supplied in convenient, re-sealable trays.

Packs of 25 disassembled XLR's

Warning

Not to be used as mains connectors

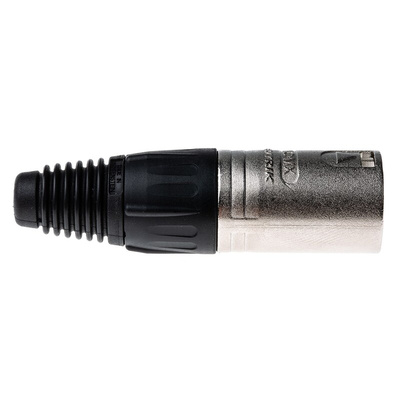

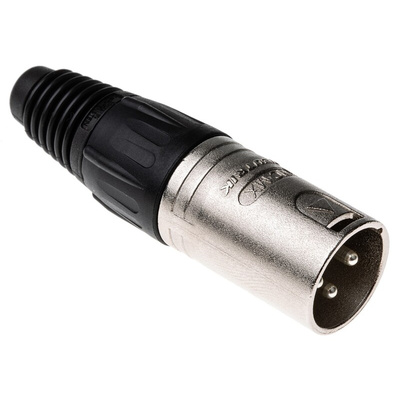

Neutrik XLR Connector

The Neutrik male XLR connector has three contacts with silver over nickel plating. Its has a current rating of 16A and the voltage rating of 50V. It has a compact design with sturdy die-cast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all the cables.
Warning:
Not to be used as mains connectors

Features and Benefits

Boot with rubber gland gives high protection against bending stress
Coloured rings and boots available for coding and marking
Parts are polarised and securely fitted, thereby eliminating connector noise
Rugged zinc die-cast shell, long lasting and durable
Connector bodies is diecast zinc/aluminium
Insulator is polyester/nylon
Test voltage: 1500VAC
Contact resistance is ≤3mohm
Insertion force is ≤20N
Withdrawal force is ≤20N
Insulation resistance is ≥109ohm
Operating temperature ranging between -30°C and 80°C

Certifications

UL approved
UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20

NC3M Technical Drawing
