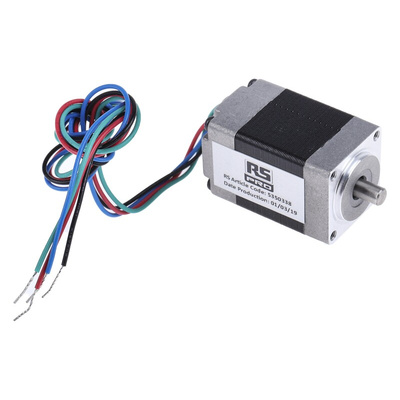

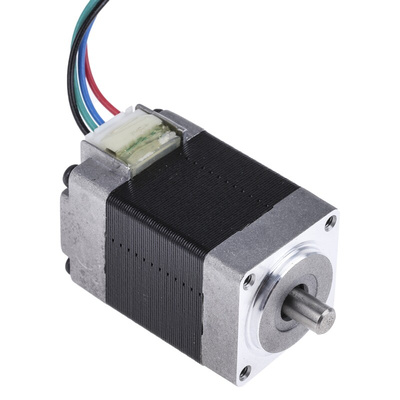

RS PRO Hybrid, Permanent Magnet Stepper Motor, 17.5mNm Torque, 3.96 V, 1.8°, 20.2 x 20.2mm Frame, 4mm Shaft, Шаговый двигатель

RS PRO Hybrid, Permanent Magnet Stepper Motor, 3.96 V, 4 mm Shaft Diameter

For highly accurate position control in industrial devices, choose this hybrid stepper motor from RS PRO. It's controlled by discrete electrical pulses rather than continuous current and stays in a particular position as long as power is supplied. This means it doesn't accumulate errors during operation, so it's easy to use and maintain in variable speed devices, such as CNC (Computerised Numerical Control) machines and 3D printers.
This motor uses a permanent magnet, so it maintains full torque even at low speeds, which makes it highly efficient. It's also very easy to maintain and doesn't produce much noise during operation.
Stepper motors are typically connected to open-loop systems so they can be controlled digitally for precise handling. This unit is useful in both holding and positioning applications, such as in packaging machinery, fluid dispensing pumps and lab equipment.

Features and Benefits

• Current rating of 600 mA
• Hybrid, permanent magnet DC stepper motor
• Depth of 33 mm
• Shaft diameter of 4 mm
• Shaft length of 5 mm
• Frame size of 20.2 mm x 20.2 mm
• Holding torque of 17.5 mNm (millinewton metres)
• Four wires
• Resistance/phase of 6.5 Ω
• RoHS (Restriction of Hazardous Substances) compliant
• Step angle of 1.8º
• Supply voltage of 3.96 V

RS PRO Datasheet
