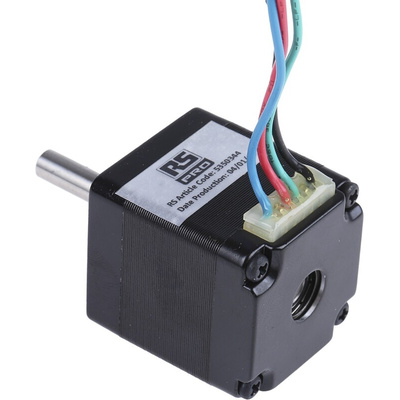

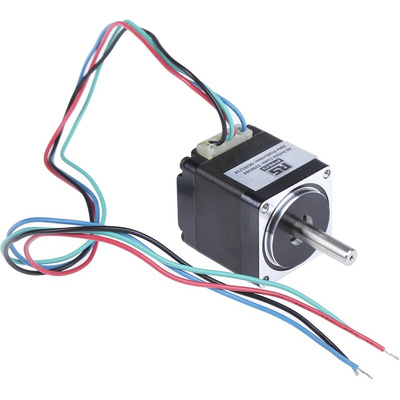

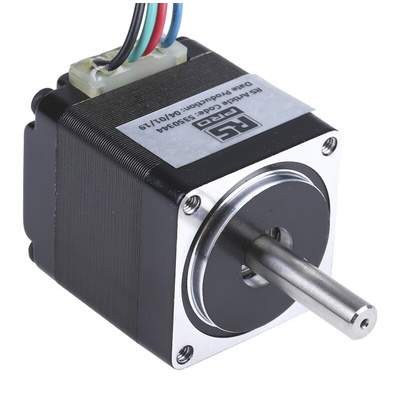

RS PRO Hybrid, Permanent Magnet Stepper Motor, 60mNm Torque, 3.8 V, 1.8°, 28 x 28mm Frame, 5mm Shaft, Шаговый двигатель

RS PRO Hybrid Stepper Motor 1.8°, 60 Nm, 3.8 V, 0.67 A, 4 Wires

Make precise and controlled movements with electric devices with the help of this RS PRO hybrid stepper motor. Offering high precision and efficiency at lower speeds, stepper motors are brushless assemblies that divide a full motor rotation into several smaller, equal steps. This hybrid stepper model maximises power in small devices through the combination of both permanent magnet and variable reluctance motor technologies.

Like all of our RS PRO products, engineers have stringently tested this motor for durability and consistency. It's also RoHS (Restriction of Hazardous Substances) compliant, so it doesn't contain toxic levels of hazardous materials such as lead.

These motors have a range of commercial applications – from camera lenses and DVD players to 3D printers. They're also commonly found in lasers and optics, where they form part of complex devices such as linear actuators, rotation stages and goniometers.

Features and Benefits

• Step angle of 1.8°
• Holding torque of 60 mNm

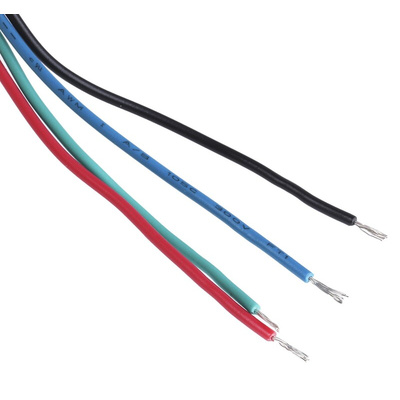

• Four-wire bipolar winding
• Voltage rating of 3.8 V
• Frame size of 28 x 28 mm
• Hybrid stepper motor type with permanent magnet
• Current rating of 670 mA
• Depth of 32 mm
• Resistance per phase of 5.6 Ω
• RoHS (Restriction of Hazardous Substances) compliant product

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
