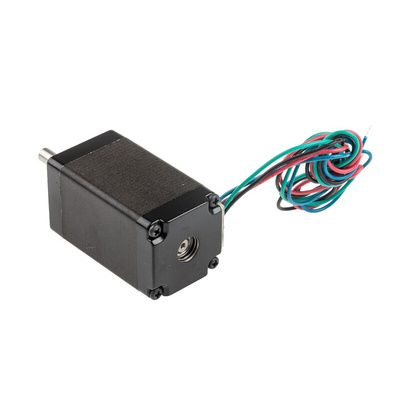

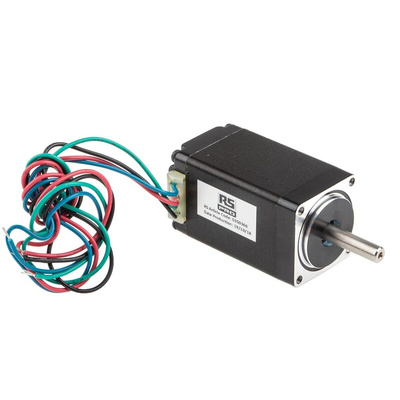

RS PRO Hybrid, Permanent Magnet Stepper Motor, 0.12Nm Torque, 6.2 V, 1.8°, 28 x 28mm Frame, 5mm Shaft, Шаговый двигатель

RS PRO Hybrid Stepper Motor 1.8°, 0.12 Nm, 6.2 V, 670 mA, 4 Wires

The RS PRO hybrid stepper motor is ideal for making precise and controlled movements with electric devices. Stepper motors are a type of brushless motion-control positioning system, which divides a full motor rotation into several smaller, equal steps. Typically limited to low RPM applications, they provide greater precision and higher efficiency at lower speeds. Hybrid stepper models combine permanent magnet and variable reluctance motor technologies to bring more power to small devices.

It's RoHS (Restriction of Hazardous Substances) compliant, so it doesn't contain harmful levels of hazardous materials like lead. As part of our trusted RS PRO range, this hybrid stepper motor has also been tested by engineers for durability and consistency.

Commonly found in the field of lasers and optics, these motors often form part of complex devices like linear actuators, rotation stages and goniometers. You'll find them in a range of commercial uses, too, in everything from camera lenses and DVD players to 3D printers.

Features and Benefits

• Step angle of 1.8°
• Holding torque of 0.12 Nm

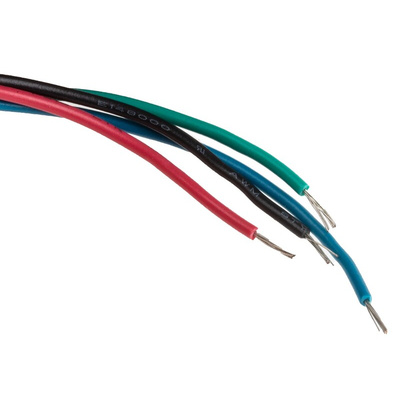

• Four-wire bipolar winding
• Voltage rating of 6.2 V
• Frame size of 28 x 28 mm
• Hybrid stepper motor type with permanent magnet
• Current rating of 670 mA
• Depth of 51 mm
• Resistance per phase of 9.2 Ω
• RoHS (Restriction of Hazardous Substances) compliant product

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
