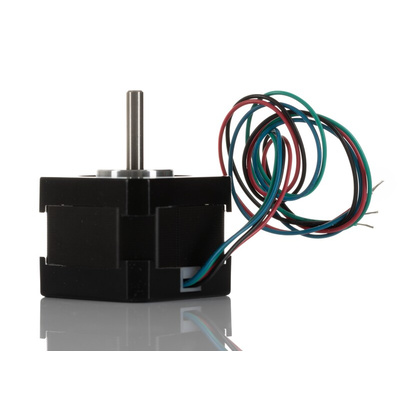

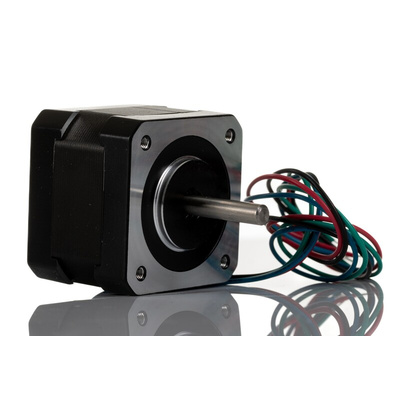

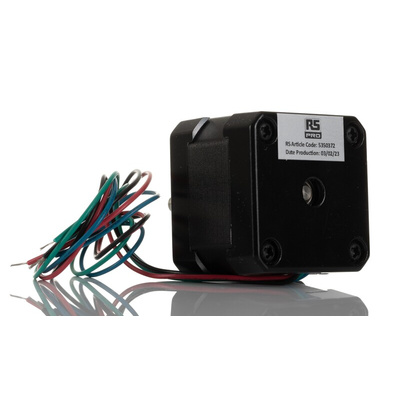

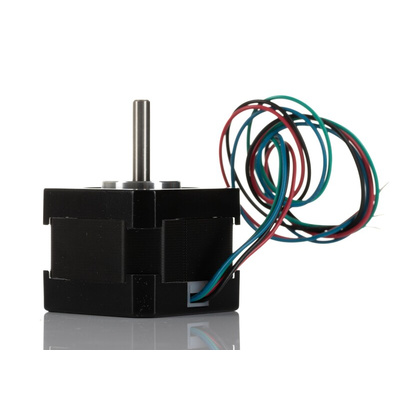

RS PRO Hybrid, Permanent Magnet Stepper Motor, 2.2mNm Torque, 2.8 V, 0.9°, 42.3 x 42.3mm Frame, 5mm Shaft, Шаговый двигатель

RS PRO Hybrid, Permanent Magnet Stepper Motor, 2.8 V, 1.33 A, 4 Wire

The RS PRO hybrid stepper motor is ideal for making precise and controlled movements with electric devices. Offering high precision and efficiency at lower speeds, stepper motors are brushless assemblies that divide a full motor rotation into several smaller, equal steps. This type of hybrid stepper model benefits from both permanent magnet and variable reluctance motor technologies and is used to maximise power in small devices.

Why Would You Choose This Stepper Motor?

The motor has been tested by engineers for durability and consistency to earn it the RS PRO seal of approval. For peace of mind, it's RoHS (Restriction of Hazardous Substances) compliant, so doesn't contain harmful levels of toxic materials, such as lead.

Features and Benefits

• Step angle: 0.9°


• Holding torque: 0.22 Nm


• Four-wire bipolar winding


• Voltage rating: 2.8 V


• Frame size: 42.3 x 42.3 mm


• Stepper motor type: Hybrid, Permanent Magnet


• Current rating: 1.33 A


• Depth: 33 mm


• Resistance per phase: 2.1 Ω


• RoHS

Typical Applications

Hybrid stepper motors are often found in lasers and optics applications, as part of complex devices such as linear actuators and goniometers. They can be used in a variety of commercial applications – you'll find them in everything from camera lenses and DVD players to 3D printers
