RS PRO Hybrid Stepper Motor, 0.44Nm Torque, 2.8V, 0.9°, 42.3 x 42.3mm Frame, 5mm Shaft, Шаговый двигатель

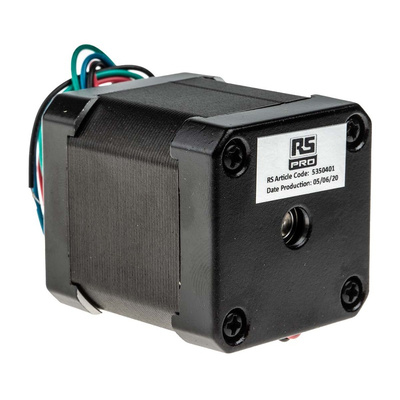

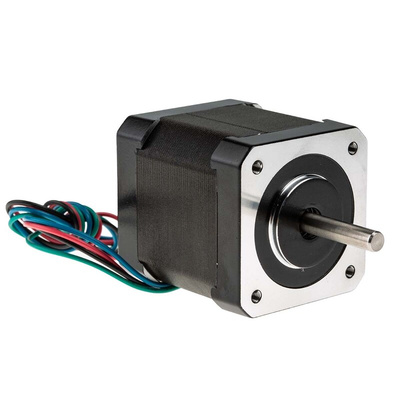

RS PRO 4 Wire Bipolar Hybrid Stepper Motor 0.9°, 0.44 Nm, 2.8 V, 1.68 A, 4 Wires

A hybrid stepper motor with a 4 wire bipolar winding enabling precision and controlled movements with electric devices. Stepper motors are brushless assemblies that divide a full motor rotation into several smaller, equal steps, for greater precision and higher efficiency at lower speeds. A hybrid stepper model combines both permanent magnet and variable reluctance motor technology to maximize power in small devices.
These motors are commonly found in the field of lasers and optics, where they form part of complex devices such as linear actuators, rotation stages and goniometers. They have a range of commercial uses too, and you'll find them in everything from camera lenses and DVD players to 3D printers.

Features and Benefits

• Step angle of 0.9°
• Holding torque of 0.44 Nm

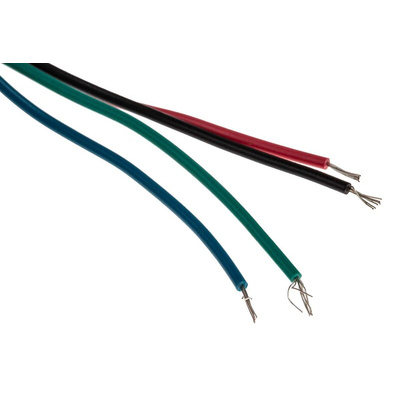

• Four-wire bipolar winding
• Voltage rating of 2.8 Vdc
• Frame size of 42.3 x 42.3 mm
• Hybrid stepper motor type
• Shaft diameter of 5 mm
• Current rating of 1.68 A
• Shaft length of 24 mm
• Depth of 47 mm
• Resistance per phase of 1.65 Ω
• RoHS (Restriction of Hazardous Substances) compliant product
