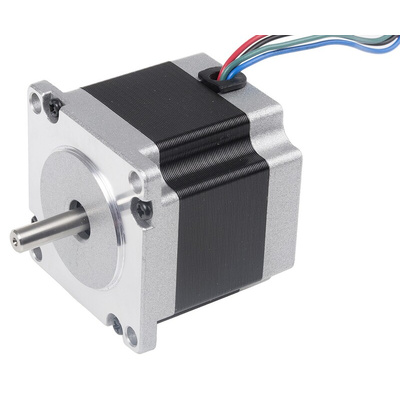

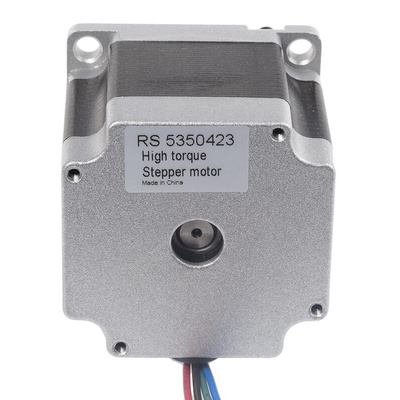

RS PRO Hybrid, Permanent Magnet Stepper Motor, 1.0Nm Torque, 2.3 V, 1.8°, 56.4 x 56.4mm Frame, 6.35mm Shaft, Шаговый двигатель

RS PRO Hybrid, Permanent Magnet Stepper Motor, 2.3 V, 6.35 mm Shaft Diameter

Need accurate position control in an industrial device? Use this RS PRO hybrid stepper motor. Instead of using continuous current, the motor is controlled by discrete electrical pulses. It will also stay in a particular position as long as power is supplied, so it won't accumulate errors while it's running. This means it's straightforward to use and maintain in variable speed devices, including 3D printers or Computerised Numerical Control (CNC) machines.


This motor can maintain full torque even at low speeds thanks to the permanent magnet. This makes it highly efficient and reduces energy waste. It also produces low levels of noise and is easy to maintain.


Stepper motors are frequently connected to open-loop systems so they can be digitally controlled for precise handling. The product is ideal for both positioning and holding applications, such as fluid dispensing pumps, lab equipment and packaging machinery.

Features and Benefits

• Current rating of 2.8 A


• Hybrid, permanent magnet DC stepper motor


• Depth of 51 mm


• Shaft diameter of 6.35 mm


• Shaft length of 19 mm


• Detent torque of 35 mNm (millinewton metres)


• Frame size of 56.4 mm x 56.4 mm


• Holding torque of 1 Nm (Newton metres)


• Four wires


• Resistance/phase of 0.83 Ω


• RoHS (Restriction of Hazardous Substances) compliant


• Step angle of 1.8°


• Supply voltage of 2.3 V
