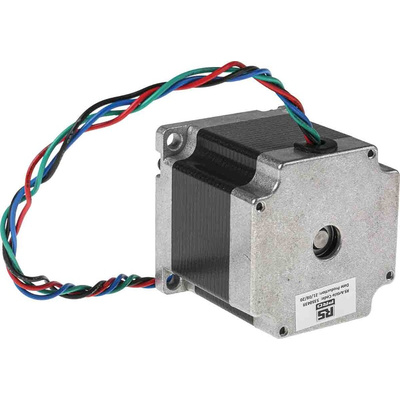

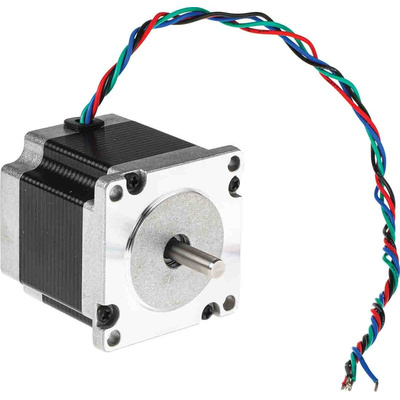

RS PRO Hybrid, Permanent Magnet Stepper Motor, 1.26Nm Torque, 2.5 V, 1.8°, 56.4 x 56.4mm Frame, 6.35mm Shaft, Шаговый двигатель

RS PRO Hybrid Stepper Motor 1.8°, 1.26 Nm, 2.5 V, 2.8 A, 4 Wires

The brushless RS PRO hybrid stepper motor is ideal for making exact, controlled movements with electric devices. Stepper motors are used to divide a full motor rotation into smaller, equal steps, creating higher precision and efficiency at slower speeds. This type of hybrid stepper model maximises power in small devices thanks to a combination of permanent magnet and variable reluctance motor technologies.

Like all products in our RS PRO range, this device has been tested by engineers for durability and consistency. It's also RoHS (Restriction of Hazardous Substances) compliant, so it won't contain harmful levels of hazardous materials like lead.

These motors commonly form part of complex devices found in lasers and optics. They also have a range of commercial uses, and you'll find them in everything from camera lenses and DVD players to 3D printers.

Features and Benefits

• Step angle of 1.8°
• Holding torque of 1.26 Nm
• Detent torque of 42 mNm
• Four-wire bipolar winding
• Voltage rating of 2.5 V
• Frame size of 56.4 x 56.4 mm
• Hybrid stepper motor type with permanent magnet
• Current rating of 2.8 A
• Depth of 56 mm
• Resistance per phase of 0.9 Ω
• RoHS (Restriction of Hazardous Substances) compliant product

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
