RS PRO Hybrid, Permanent Magnet Stepper Motor, 1.89Nm Torque, 3.2 V, 1.8°, 56.4 x 56.4mm Frame, 6.35mm Shaft, Шаговый двигатель

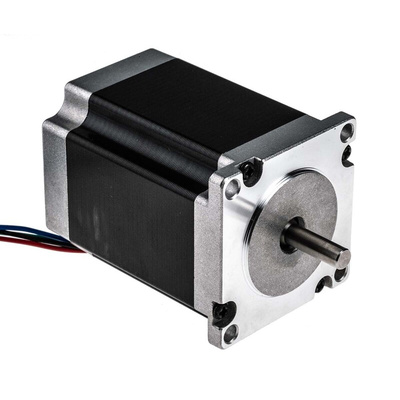

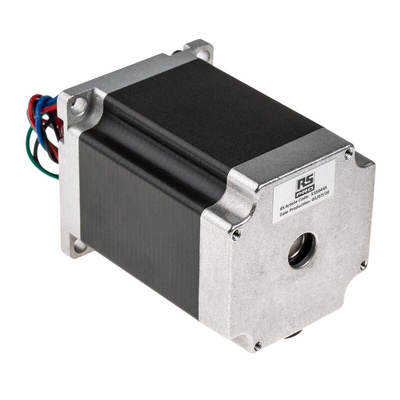

RS PRO Hybrid Stepper Motor 1.8°, 1.89 Nm, 3.2 V, 2.8 A, 4 Wires

Use this RS PRO hybrid stepper motor to make controlled and precise movements with electric devices. Stepper motors are brushless assemblies and you can use them to divide full motor rotations into smaller, equal steps. This improves precision and efficiency at reduced speeds. This hybrid stepper will maximise power using variable reluctance motor technology and an integrated permanent magnet.

As part of the RS PRO range, it's been stringently tested by engineers for quality and reliability. It's RoHS (Restriction of Hazardous Substances) compliant, too, which means that it doesn't contain harmful levels of any hazardous materials such as lead.

These motors have a range of commercial uses and you'll find them in everything from camera lenses and DVD players to 3D printers. They're also commonly found in lasers and optics, where they work as part of complex devices such as linear actuators, rotation stages and goniometers.

Features and Benefits

• Step angle of 1.8°
• Holding torque of 1.89 Nm
• Detent torgue of 72 mNm

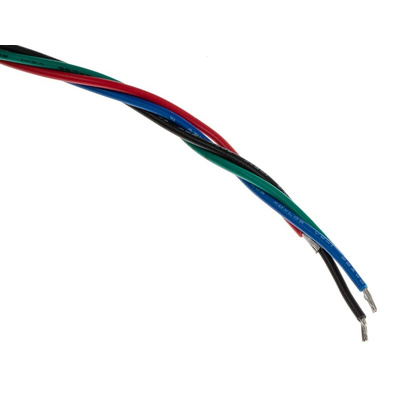

• Four-wire bipolar winding
• Voltage rating of 3.2 V
• Frame size of 56.4 x 56.4 mm
• Hybrid stepper motor type
• Current rating of 2.8 A
• Depth of 76 mm
• Resistance per phase of 1.13 Ω
• RoHS (Restriction of Hazardous Substances) compliant product

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
